Xperix RealScan-FC

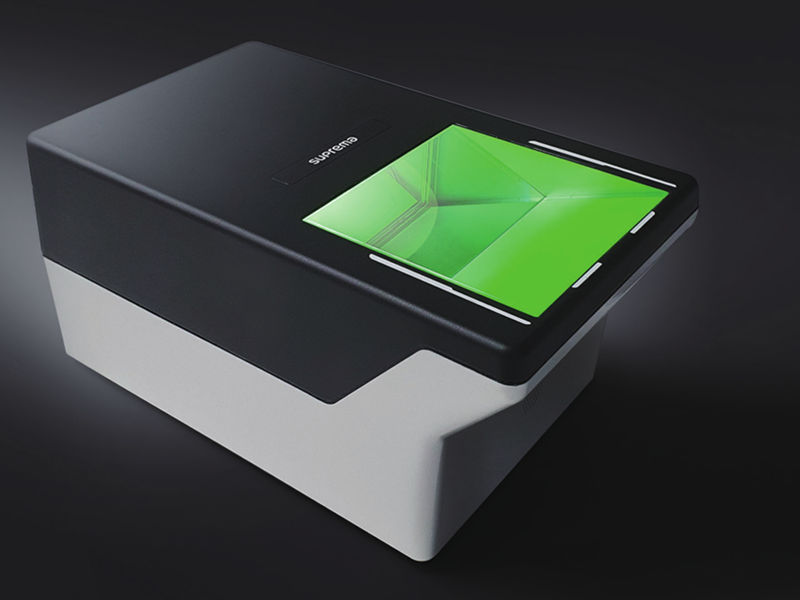

Xperix RealScan-FC is an optical palmprint scanner. The compact, light-weight scanner is suitable for mobile operation.
The scanner is able to capture these types of palm prints and fingerprints:
- Lower & upper palm
- Writer's palm
- Four-finger slap
- Dual flat fingerprints (dual thumbs)
- Single flat fingerprint
- Single rolled fingerprint
The manufacturer specifies that the scanner is compliant with FBI IQS Appendix F requirements. It features slippage detection for flat and rolled fingerprints. Also specified IP64 Ingress Protection rating and USB or DC 12V power supply.
Support modules for this scanner are included in:
- MegaMatcher 2025.1 SDK – includes components for palm print capture and multiple fingers capture and segmentation.
- MegaMatcher On Card 2025.1 SDK – includes components for single flat fingerprints capture.
- VeriFinger 2025.1 SDK – includes components for multiple fingers capture and segmentation.
Specifications
| Scanner Name | RealScan-FC Compact Palmprint Live Scanner |
| Manufacturer | Xperix Inc. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows |
| Resolution | 500 ppi |
| Image capture area | 131 x 130 mm (5.2" x 5.1") |
| Palm print image size | 2500 x 2500 pixels |
| Fingerprint image size |
1600 x 1500 pixels (for 4 finger slaps)
800 x 750 pixels (for single rolled or flat finger) |
| Sensor type | Optical |
| Device size | 193 x 315 x 150 mm (7.6" x 12.4" x 5.9") |
| Device weight | 5.26 kg (11.61 lbs) |
| Operating temperature | 0°C ~ +50°C (32°F ~ 122°F) |
| Operating humidity | 10% - 90% (non-condencing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2 and BM-Slim2
- BioMini Slim 3 and BM-Slim3
- BioMini Combo
- BioMini Combo 2
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-F
- RealScan S60 and RealScan S60M
- SFR300-S
- SFU300
