Xperix BioMini Combo 2

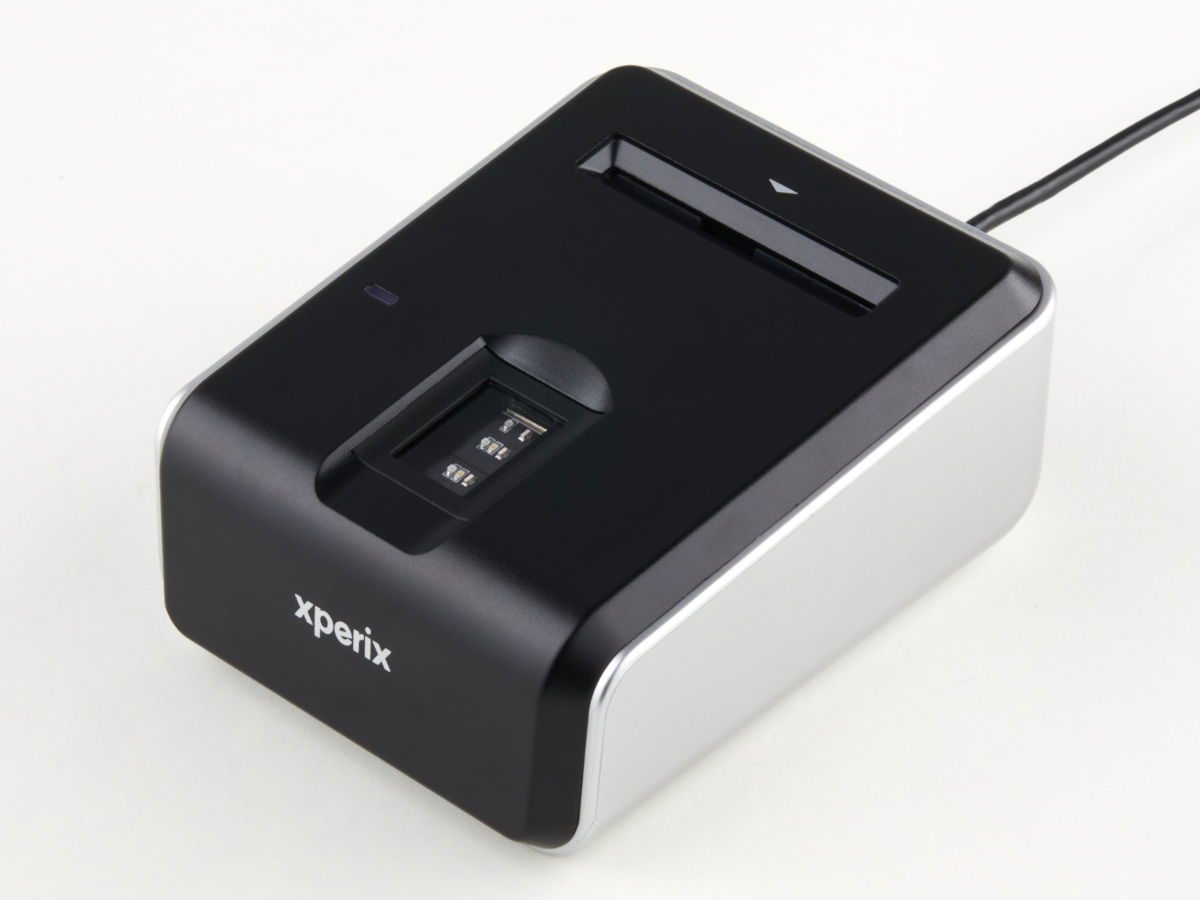

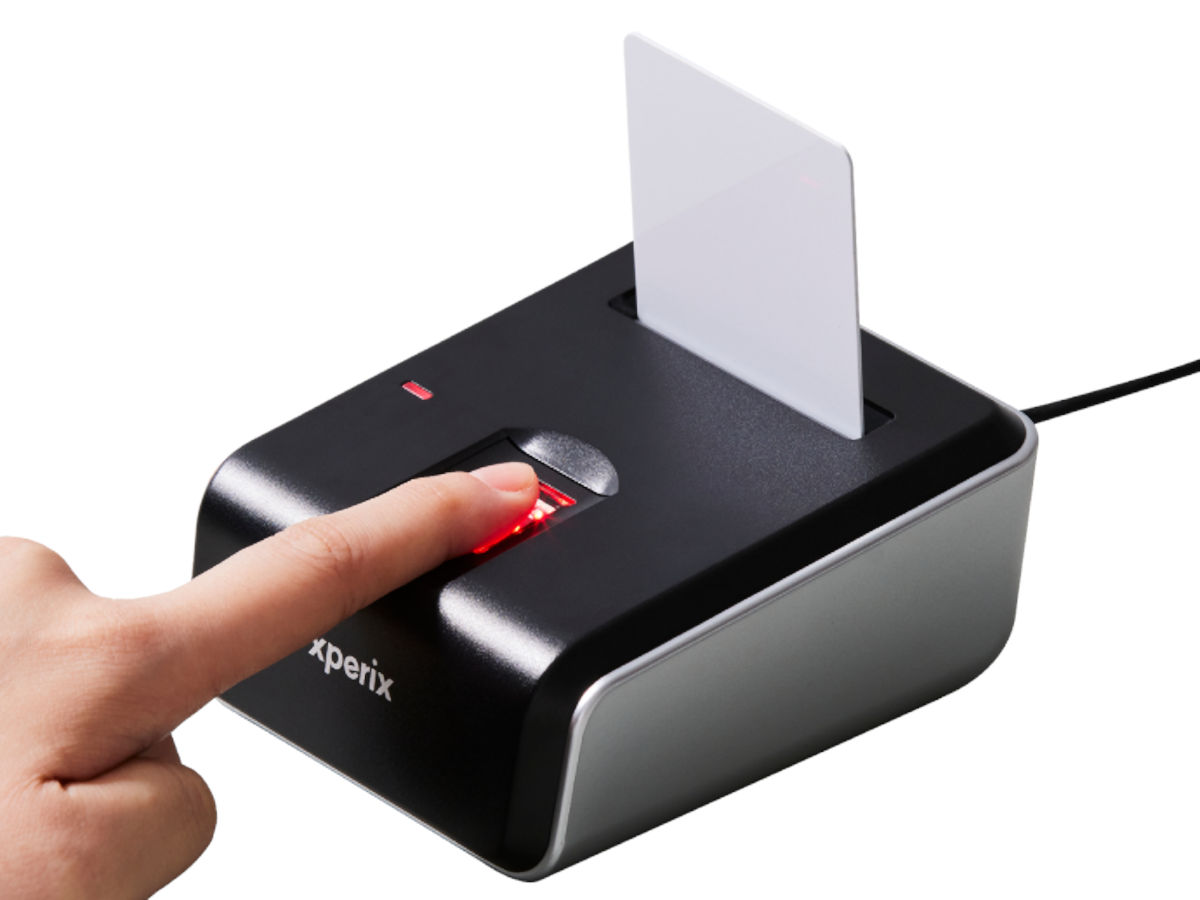

Xperix BioMini Combo 2 is a compact device that integrates an optical fingerprint scanner and a contact smart card reader. The fingerprint scanner is certified by the FBI as PIV and Mobile ID FAP 20 compliiant.
The manufactuter specifies that the fingerprint reader features AI-based Live Finger Detection (LFD) technology, which identifies artificial fingerprints made from materials such as silicone, glue, or paper. The whole device is IP65-rated water and dust protection, the device is suitable for both indoor and outdoor environments.
Support modules for these scanners are included in:
Specifications
| General | |
|---|---|
| Scanner Name | BioMini Combo 2 |
| Manufacturer | Xperix Inc. |
| Connection | USB 2.0 |
| Device size | 96 x 115 x 53 mm (3.8" x 4.5" x 2.1") |
| Operating temperature | -10°C ~ +50°C (14°F ~ 122°F) |
| Fingerprint scanner | |
| Supported OS (*) | Microsoft Windows |
| Resolution | 500 ppi |
| Platen size | 17 x 21 mm (0.7" x 0.9") |
| Image capture area | 16 x 20 mm (0.6" x 0.8") |
| Fingerprint image size | 300 x 400 pixels |
| Sensor type | Optical |
| Smart card reader | |
| Supported OS (*) | Microsoft Windows |
| Standard compliancy | ISO/IEC 7816 Class A/B/C, EMV 2000 |
| Accepted card voltage | 1.8V, 3V, 5V |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2 and BM-Slim2
- BioMini Slim 3 and BM-Slim3
- BioMini Combo
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-FC
- RealScan-F
- RealScan S60 and RealScan S60M
- SFR300-S
- SFU300
