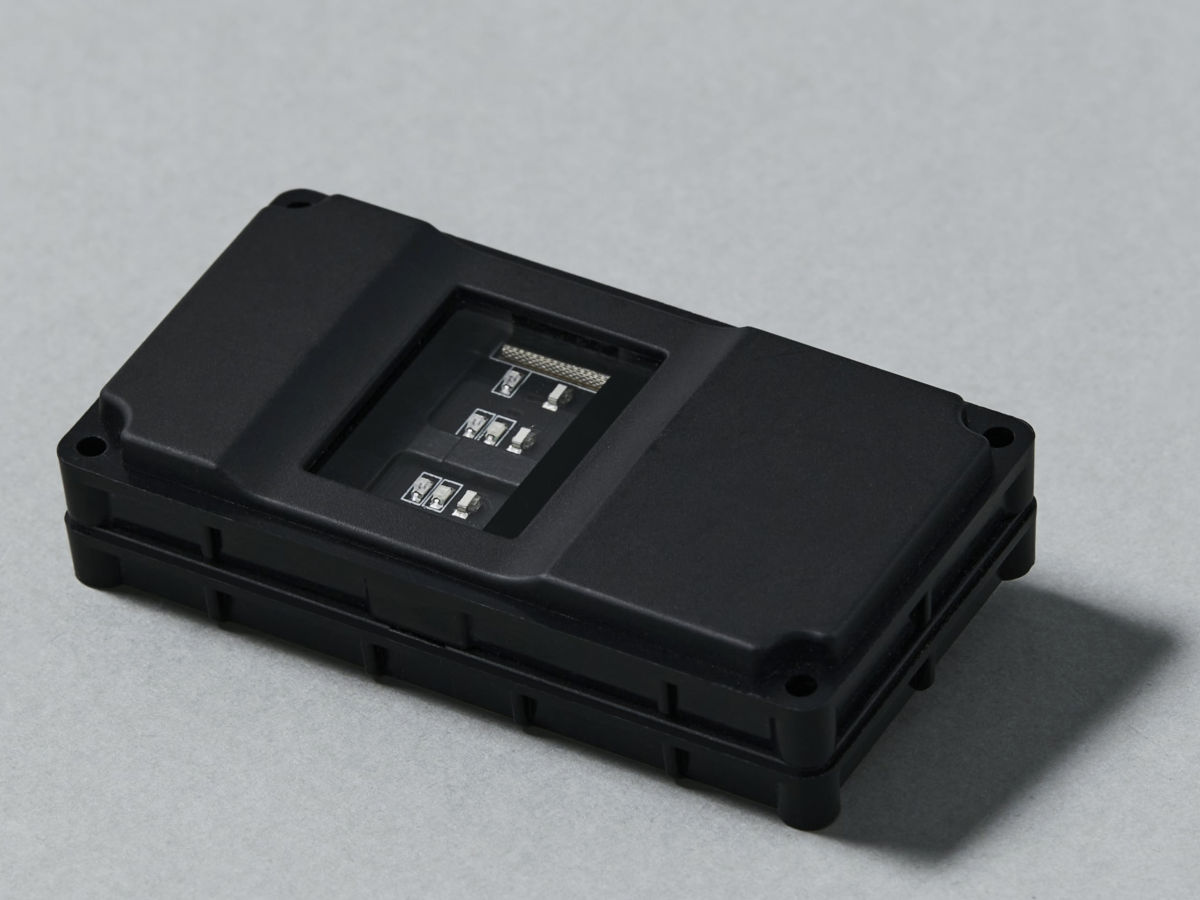

Xperix BioMini Slim 2 scaner and BM-Slim2 module
Xperix BioMini Slim 2 is a FIPS-201 (PIV) compliant optical fingerprint reader. Also, BM-Slim2 module in a reduced form factor is available for integration into compact solutions.
Both the scanner and the module are also certified by the FBI as Mobile ID FAP20 compliant.
The manufacturer specifies, that both devices feature Live Finger Detection. Also specified that the scanner has IP65-rated dust- and waterproof case.
Support module for these devices is included in MegaMatcher 2025.1 SDK, MegaMatcher On Card 2025.1 SDK and VeriFinger 2025.1 SDK.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Scanner | Module | |
| Device Name | BioMini Slim 2 ultra-slim FAP20 fingerprint scanner | BM-Slim2 ultra-slim FAP20 authentication scanner module |
| Manufacturer | Xperix Inc. | |
| Connection | USB 2.0 | |
| Supported OS (*) | Microsoft Windows Linux (x86-64) Android |
|
| Resolution | 500 ppi | |
| Image capture area (Platen size) | 17 x 21 mm (0.6" x 0.8") | |
| Fingerprint image size | 300 x 400 pixels | |
| Sensor type | Optical | |
| Device size | 73 x 41 x 18 mm (2.9" x 1.6" x 0.7") |
59 x 32 x 13 mm (2.3" x 1.3" x 0.5") |
| Device weight | 91 grams (3.2 oz) | 30 grams (1.1 oz) |
| Operating temperature | -10°C ~ +50°C (10°F ~ 122°F) | |
| Operating humidity | 0% - 90% (non-condensing) | |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 3 and BM-Slim3
- BioMini Combo
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-FC
- RealScan-F
- RealScan S60
- SFR300-S
- SFU300
