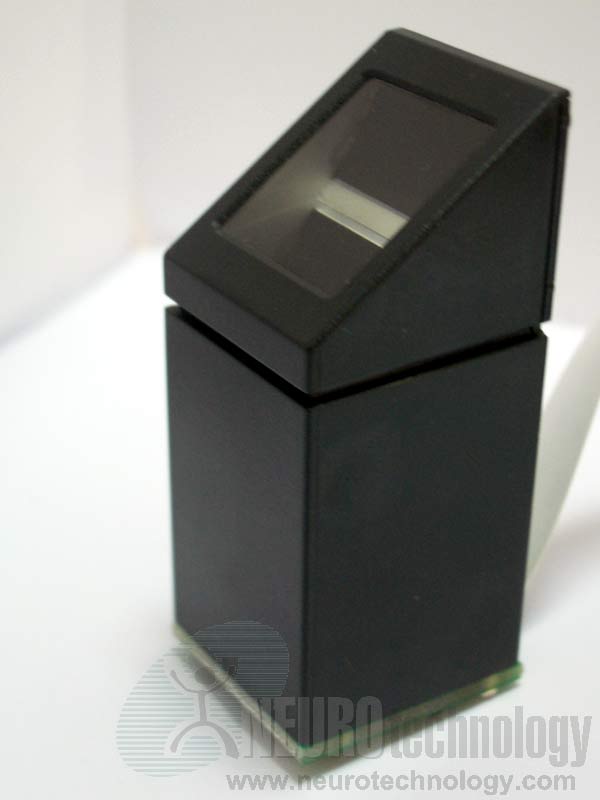

Suprema SFU300
Suprema SFU300 is an optical fingerprint sensor suitable for OEM application. USB 2.0 can be used for connecting the sensor to the host device.
Support modules for this sensor are included in MegaMatcher 12.3 SDK, MegaMatcher On Card 12 SDK, VeriFinger 12.3 SDK and Free Fingerprint Verification SDK.
Specifications
| Scanner Name | SFU300 |
| Manufacturer | Suprema ID |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32-bit and 64-bit), Linux (32-bit and 64-bit) |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 16 x 18 mm (0.6" x 0.7") |
| Fingerprint image size | 288 x 320 pixels |
| Sensor type | Optical |
| Device size | 21 x 23 x 52 mm (0.8" x 0.9" x 2.0") |
| Operating temperature | -10°C ~ +50°C |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Suprema scanners
Neurotechnology SDKs also include support modules for these Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2
- BioMini Slim 3
- BioMini Combo
- RealScan-10
- RealScan-G10 and RealScan-G10F
- RealScan-D
- RealScan-S
- RealScan-FC
- RealScan-F
- SFR300-S
