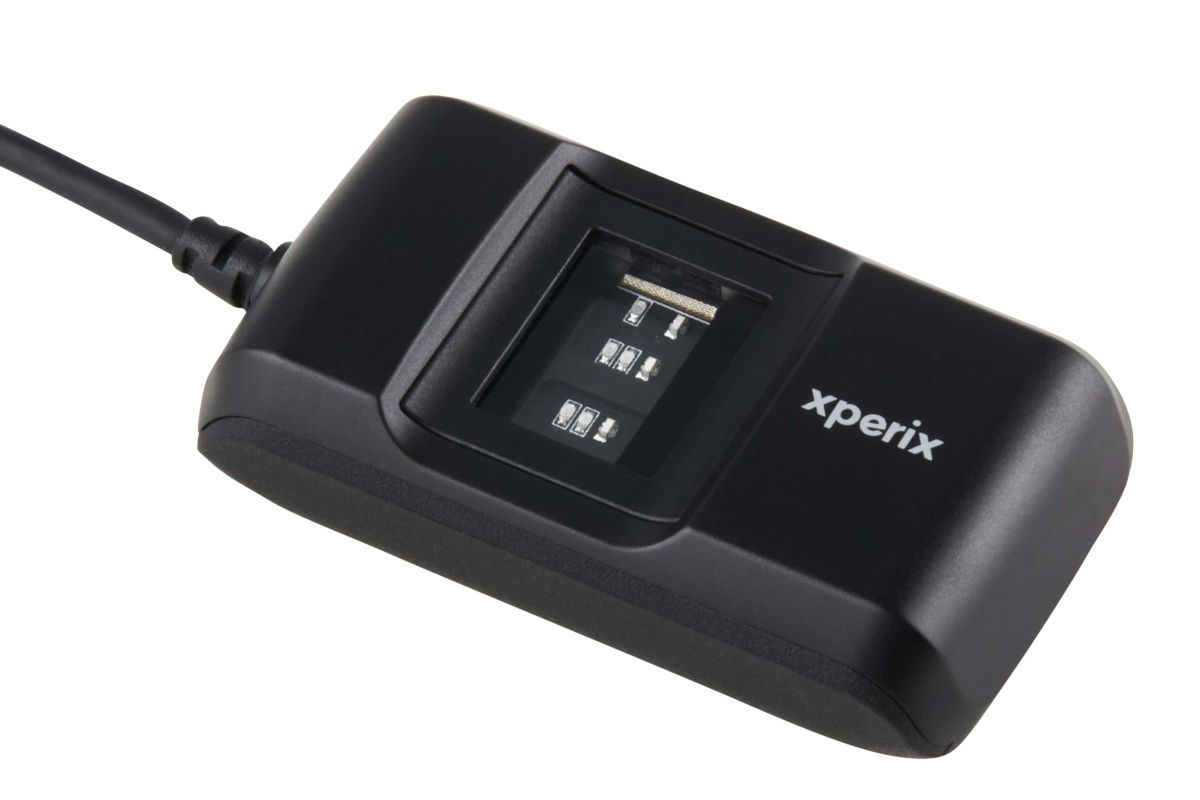

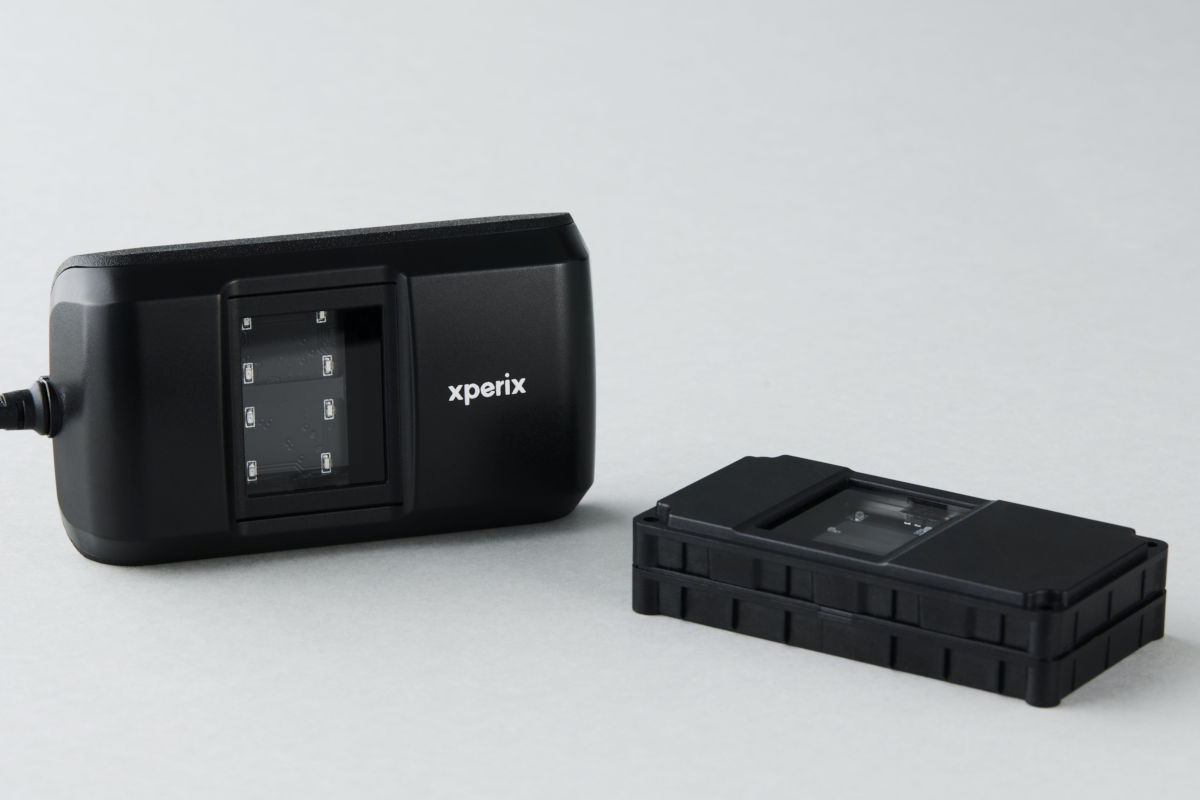

Xperix BioMini Slim 3 scaner and BM-Slim3 module

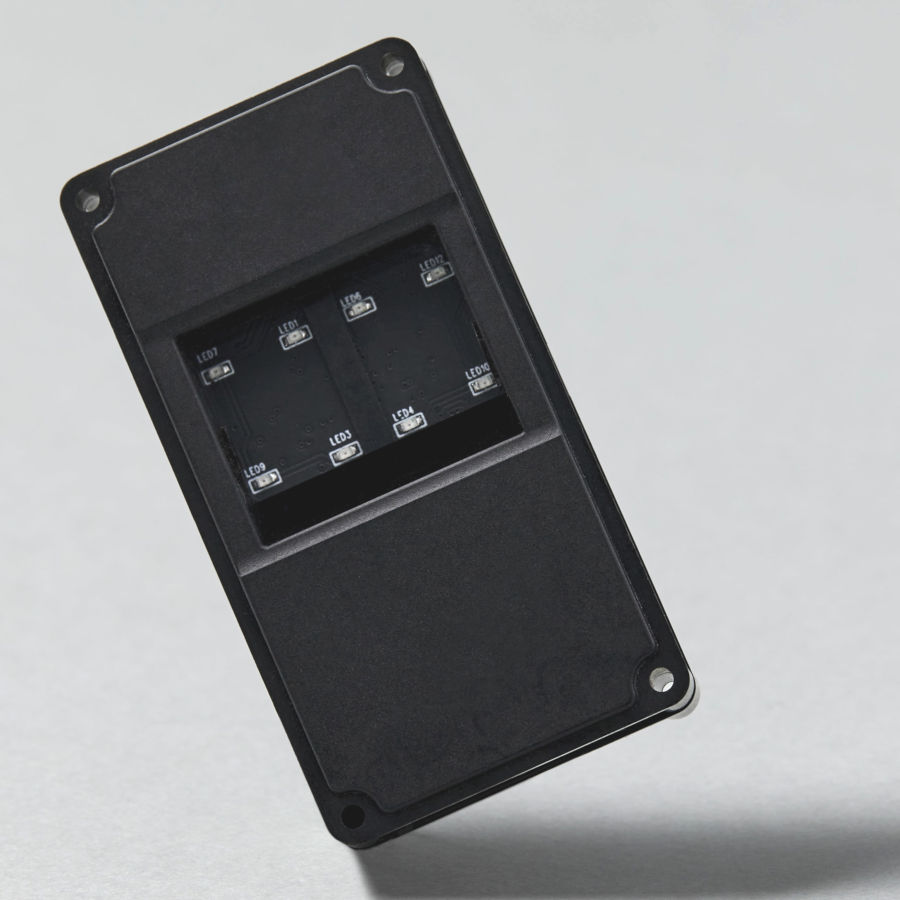

BioMini Slim 3 is a FIPS-201 (PIV) compliant optical fingerprint reader. Also, BM-Slim3 module in a reduced form factor is available for integration into compact solutions.
Both the scanner and the module are also certified by the FBI as Mobile ID FAP30 compliant.
The manufacturer specifies, that the scanner features Live Finger Detection. Also specified that the scanner has IP65-rated dust- and waterproof sensor surface.
Support module for these devices is included in MegaMatcher 2025.1 SDK, MegaMatcher On Card 2025.1 SDK and VeriFinger 2025.1 SDK.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| Scanner | Module | |
| Device Name | BioMini Slim 3 ultra-slim FAP30 fingerprint scanner | BM-Slim3 ultra-slim FAP30 standalone authentication module |
| Manufacturer | Xperix Inc. | |
| Connection | USB 2.0 | |
| Supported OS (*) | Microsoft Windows Android |
|
| Resolution | 500 ppi | |
| Image capture area (Platen size) |
22 x 26 mm (0.9" x 1.1") - platen size
20 x 25 mm (0.8" x 1.0") - sensing area |
|
| Fingerprint image size | 400 x 500 pixels | |
| Sensor type | Optical | |
| Device size | 83 x 46 x 20 mm (3.3" x 1.8" x 0.8") | 68 x 36 x 15 mm (2.7" x 1.4" x 0.6") |
| Device weight | 111 grams (3.9 oz) | 49 grams (1.7 oz) |
| Operating temperature | -10°C ~ +50°C (10°F ~ 122°F) | |
| Operating humidity | 0% - 90% (non-condensing) | |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Xperix / Suprema scanners
Neurotechnology SDKs also include support modules for these Xperix and Suprema scanners:
- BioMini
- BioMini Plus and BioMini Plus2
- BioMini Slim and BioMini SFU-S20
- BioMini Slim 2 and BM-Slim2
- BioMini Combo
- RealScan-10
- RealScan-G10
- RealScan-D
- RealScan-FC
- RealScan-F
- RealScan S60
- SFR300-S
- SFU300
