Futronic FS88 / FS88H

FS88 reader
Futronic FS88 fingerprint scanner, general view
Click to zoom


FS88H reader

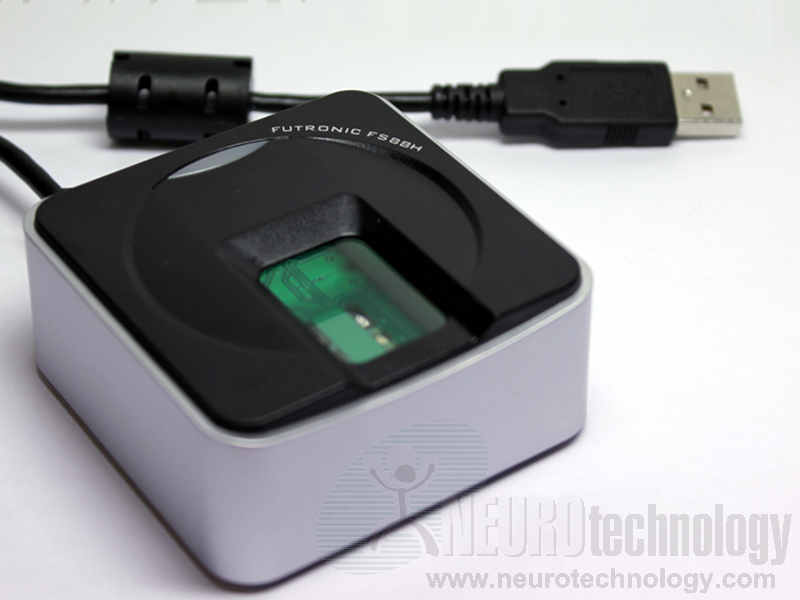

Futronic FS88H fingerprint scanner, general view
Click to zoom

Futronic FS88 is an optical USB 2.0 fingerprint scanner. The scanner was certified by FBI to be compliant with PIV-071006 Image Quality Specification for Singer Finger Reader. Also FS88 is listed in the US General Services Administration (GSA) FIPS 201 Evaluation Program Approved Product List.

Technically FS88 scanner is an enhanced version of Futronic FS80 with CMOS image sensor technology and precise optical system. Infra-red LEDs are used to illuminate a finger during scanning. The scanner is able to adapt to fingerprint image quality (wet, dry or blurred fingers) by adjusting illumination intensity. Sensors window is able to resist scratches and other stress.

The FS88 scanner includes an electronic circuit for live finger detection and special software for it.

Futronic FS88H is an updated model of the original FS88.

Support modules for these scanners are included in:

Find FS88H FIPS201/PIV Compliant USB2.0 Fingerprint Scanner
at Biometric Supply, a subsidiary of Neurotechnology.

Specifications

Scanner Name FS88 FS88H
Manufacturer Futronic Technology Co. Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows,
Linux (x86-64),
macOS,
Android
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical, CMOS
Illumination Infrared LEDs
Device size 66 x 66 x 29 mm (2.6" x 2.6" x 1.1")
Device weight 150 grams (5.3 oz.)
Operating temperature -10°C ~ +55°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Neurotechnology Solution Partners use this scanner in

Futronic FS88 scanners are used in these systems, created by Neurotechnology Solution Partners:

  • Anaxee-Neurotech Attendance – an access and attendance control system developed by Anaxee Technologies Pvt. Ltd.
  • RobotID – a generic biometric identification system created by Computer ID.
  • TouchClock – an attendance control system created by Computer ID.
  • TouchAccess – an access control system created by Computer ID.

Other Futronic scanners

Neurotechnology SDKs also include support modules for these Futronic scanners:

  • eFAM (FS84) – an embedded fingerprint scanner solution
  • FS10 – a single finger scanner with 1" x 1" platen and PIV / FIPS 201 certification
  • FS26 – a single finger scanner with MIFARE card reader/writer
  • FS26EU – a single finger scanner with PIV / FIPS 201 certification and embedded smart card reader (ISO7816 contact and MIFARE cards supported)
  • FS28 – a single finger scanner with bluetooth connection
  • FS50 – a two finger scanner with PIV / FIPS 201 certification
  • FS60 – a four finger scanner with FBI Appendix F certification
  • FS64 – a four finger / rolled fingerprint scanner with FBI Appendix F certification
  • FS80 – basic Futronic FS80-series scanner
  • FS82 – a version of FS80 with embedded smart card reader
  • FS90 – a compact scanner most suitable for using with notebook PCs, handheld devices and mobile phones
