Supported fingerprint scanners

We are always looking for scanners' manufacturers to include the support for their fingerprint scanners to our products. Please, contact us for more details.

List of supported fingerprint scanners and sensors

These fingerprint scanners and sensors are supported by our biometric products. Please, click on the scanner's name to view more information about it.

• DigitalPersona U.are.U 2000, U.are.U 4000S / 4000B, U.are.U Keyboard and U.are.U Module
• Cross Match Verifier 300 Classic, LC, LC 2.0 and Verifier 310
• Futronic FS80 and eFAM (FS84)
• NITGEN Fingkey Hamster & Fingkey Hamster II
• SecuGen Hamster III, Hamster Plus & Hamster IV
• BioLink MatchBook 3.5
• Testech Bio-i
• Startek FM200
• Tacoma CMOS
• Fujitsu MBF200
• Identix DFR 2080, DFR 2090 and DFR 2100
• TST Biometrics BiRD 3
• UPEK TouchChip TCRU1C & TCRU2C
• Green Bit DactyScan 26
• Hongda S680
• Digent Izzix FD1000
• BiometriKa FX 2000, FX 3000 & HiScan
• Lumidigm Venus Series
• id3 Certis Image
• Biometri-CS CS-Pass USB Fingerprint Sensor
• AuthenTec AES2501B, AES4000 and AF-S2
• LighTuning LTT-C500
• Atmel FingerChip

DigitalPersona U.are.U 2000

The U.are.U 2000 fingerprint scanner is a self-contained sensor for capturing a fingerprint and communicating the digital image to PC via USB interface. The on-board electronics control image capture, self-calibration, and the Plug-n-Play USB interface.

Click to zoom Click to zoom

Scanner Name U.are.U 2000S Manufacturer DigitalPersona, Inc. Connection USB Resolution 500 dpi Size 54 x 65 x 27 mm (2.13" x 2.56" x 1.06") Image capture area (Platen size) 13 x 18 mm (0.51" x 0.71") Supported OS Microsoft Windows (32bit) Operating temperature +5°C ~ +35°C

This scanner can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK).

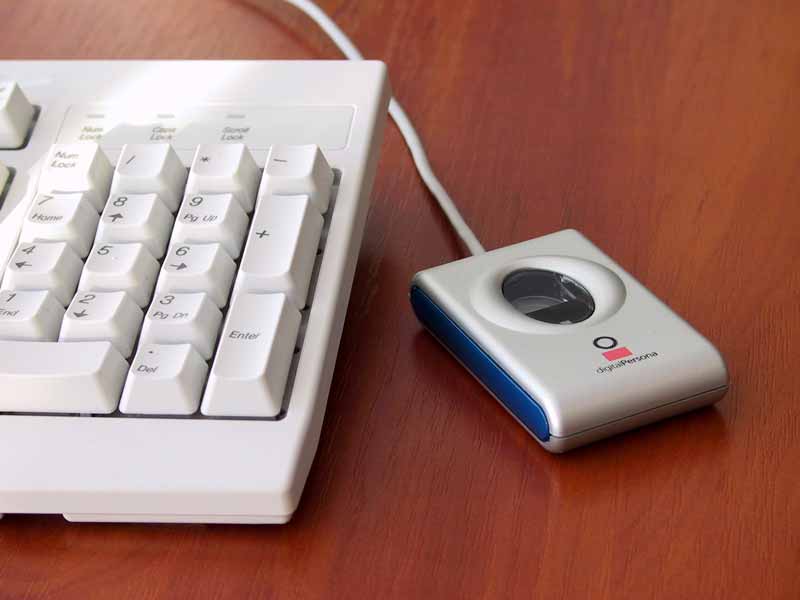

DigitalPersona U.are.U 4000S / U.are.U 4000B

The U.are.U 4000 fingerprint sensor is designed to work with PC via USB port. It has slim design and small form factor. The on-board electronics control image capture, latent fingerprint rejection, self-calibration, and the Plug-n-Play USB interface.

Click to zoom Click to zoom

Scanner Name U.are.U 4000S / U.are.U 4000B Manufacturer DigitalPersona, Inc. Connection USB Resolution 512 dpi Size 79 x 49 x 19 mm (3.11" x 1.93" x 0.75") Image capture area (Platen size) 14.6 x 18.1 mm (0.57" x 0.71") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 20-80 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK, VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

DigitalPersona U.are.U Fingerpint Keyboard

This is 104-key Windows compatible keyboard with a buildt-in U.are.U 4000 fingerprint sensor. The keyboard requires two connections: PS/2 connection for keyboard functioning and USB for fingerprint scanner.

Click to zoom

Device Name U.are.U Fingerprint Keyboard Manufacturer DigitalPersona, Inc. Connection PS/2 and USB Resolution 512 dpi Size 476 x 192 x 40 mm (18.74" x 7.56" x 1.57") Image capture area (Platen size) 14.6 x 18.1 mm (0.57" x 0.71") Supported OS Microsoft Windows (32bit) Operating temperature +10°C ~ +35°C Operating humidity 20-80 % (non-condensing)

This scanner can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK).

DigitalPersona U.are.U 4000 Fingerpint Module

The U.are.U 4000 Module is a small fingerprint scanner designed for integration into OEM equipment where fingerprint authentication is needed.

Click to zoom

Device Name U.are.U 4000 Fingerprint Module Manufacturer DigitalPersona, Inc. Connection USB Resolution 512 dpi Size 54.5 x 35.0 x 11.0 (2.15" x 1.35" x 0.43") Image capture area (Platen size) 14.6 x 18.1 mm (0.57" x 0.71") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 20-80 % (non-condensing)

This scanner can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

Cross Match Verifier 300 Classic (USB)

This scanner is intended for professional use. It operates via USB port.

Click to zoom

Scanner Name Verifier 300 Classic Manufacturer Cross Match Technologies Inc. Connection USB Resolution 500 dpi Size 53 x 158 x 60 mm (2.1" x 6.2" x 2.4") Image capture area (Platen size) 30.5 x 30.5 mm (1.2" x 1.2") Supported OS Microsoft Windows (32bit) Operating temperature 2°C ~ +38°C Operating humidity 10-95 % (non-condensing, splash-resistant)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Cross Match Verifier 300 LC

Verifier 300 LC (Lexan Case) features light weight (less than 0.5 kg). It operates via USB port.

Click to zoom

Scanner Name Verifier 300 LC Manufacturer Cross Match Technologies Inc. Connection USB Resolution 500 dpi Size 62 x 162 x 83 mm (2.45" x 6.38" x 3.25") Image capture area (Platen size) 30.5 x 30.5 mm (1.2" x 1.2") Supported OS Microsoft Windows (32bit) Operating temperature 2°C ~ +38°C Operating humidity 10-95 % (non-condensing, splash-resistant)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK, or Extended SDK).

Cross Match Verifier 300 LC 2.0

An improved version of Verifier 300 LC. Features faster frame rate and an I/R filter to improve ambient light rejection.

Click to zoom

Scanner Name Verifier 300 LC 2.0 Manufacturer Cross Match Technologies Inc. Connection USB 2.0 Resolution 500 dpi Size 62 x 162 x 83 mm (2.45" x 6.38" x 3.25") Image capture area (Platen size) 30.5 x 30.5 mm (1.2" x 1.2") Supported OS Microsoft Windows (32bit) Temperature range -18°C ~ +40°C Humidity range 10-90 % (non-condensing, splash-resistant)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK, or Extended SDK).

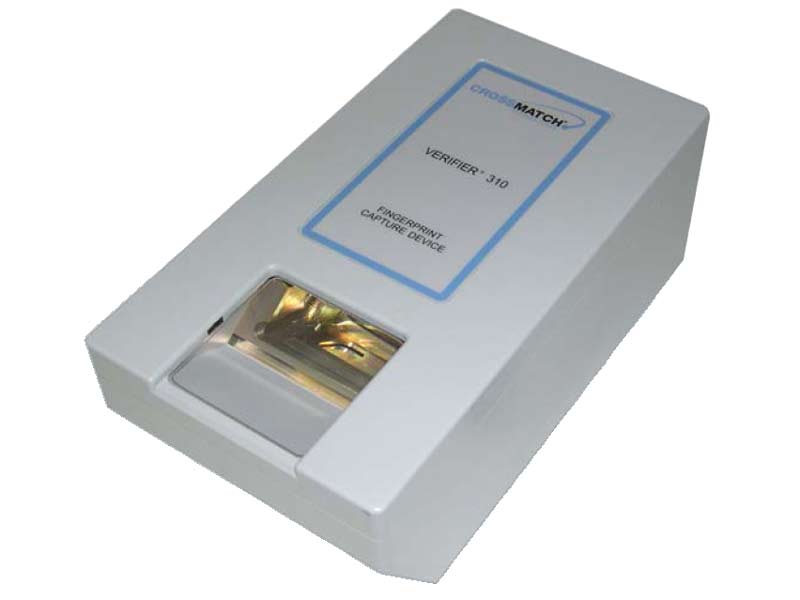

Cross Match Verifier 310

This scanner allows to scan two flat fingerprints simultaneously or one rolled fingerprint.

Click to zoom

Scanner Name Verifier 310 Manufacturer Cross Match Technologies Inc. Connection USB 2.0 Resolution 500 dpi Size 70 x 176 x 97 mm (2.75" x 6.93" x 3.81") Image capture area (Platen size) 45.7 x 45.7 mm (1.8" x 1.8") Supported OS Microsoft Windows (32bit) Temperature range 2°C ~ +38°C Humidity range 10-90 % (non-condensing, splash-resistant)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK, or Extended SDK).

Futronic FS80

Click to zoom

Scanner Name Futronic FS80 USB2.0 Fingerprint Scanner Manufacturer Futronic Technology Co. Ltd. Connection USB 2.0 Resolution 500 dpi Size 45 x 63 x 26 mm (1.8" x 2.5" x 1.0") Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9") Fingerprint image size 320 x 480 pixels Supported OS Microsoft Windows (32bit and 64bit), Linux (32bit) Operating temperature -10°C ~ +55°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Futronic eFAM (FS84)

Futronic eFAM provides immediate embedded solution to customers for various kinds of application using fingerprint technology. The scanner can be connected to the host computer using ethernet interface. 2-sensor input and 2-output control signal are available for external device control. Electric lock or other electric device can be activated by eFAM using these output control signals.

Click to zoom

Scanner Name Futronic eFAM (FS84) Manufacturer Futronic Technology Co. Ltd. Connection Ethernet Resolution 500 dpi Size 106 x 76 x 41 mm (4.2" x 3.0" x 1.6") Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9") Supported OS Microsoft Windows (32bit and 64bit), Linux (32bit and 64bit), Mac OS X Operating temperature -10°C ~ +55°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

NITGEN Fingkey Hamster

Click to zoom

Scanner Name NITGEN Fingkey Hamster Manufacturer NITGEN Co., Ltd. Connection USB 1.1 Resolution 500 dpi Size 25.3 x 40.7 x 67.7 mm (1.0" x 1.6" x 2.7") Image capture area (Platen size) 17 x 20 mm (0.7" x 0.8") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

NITGEN Fingkey Hamster II

Click to zoom

Scanner Name NITGEN Fingkey Hamster II Manufacturer NITGEN Co., Ltd. Connection USB 2.0 Resolution 500 dpi Size 61 x 80 x 47 mm (2.4" x 3.1" x 1.9") Image capture area (Platen size) 17 x 20 mm (0.7" x 0.8") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

SecuGen Hamster III scanner

Click to zoom

Scanner Name SecuGen Hamster III fingerprint recognition reader Manufacturer SecuGen Corporation Connection USB Resolution 500 dpi Size 27 x 40 x 73 mm (1.1" x 1.6" x 2.9") Image capture area (Platen size) 13 x 15 mm (0.5" x 0.6") Fingerprint image size 260 x 300 pixels Supported OS Microsoft Windows (32bit), Linux (32bit) Operating temperature 0°C ~ +40°C Operating humidity 0-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

SecuGen Hamster Plus scanner

Click to zoom

Scanner Name SecuGen Hamster Plus fingerprint recognition reader Manufacturer SecuGen Corporation Connection USB 1.1 Resolution 500 dpi Size 27 x 40 x 73 mm (1.1" x 1.6" x 2.9") Image capture area (Platen size) 13 x 15 mm (0.5" x 0.6") Fingerprint image size 260 x 300 pixels Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 0-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

SecuGen Hamster IV scanner

Click to zoom

Scanner Name SecuGen Hamster IV fingerprint recognition reader Manufacturer SecuGen Corporation Connection USB 2.0 Resolution 500 dpi Size 27 x 40 x 73 mm (1.1" x 1.6" x 2.9") Image capture area (Platen size) 13 x 17 mm (0.5" x 0.7") Fingerprint image size 258 x 336 pixels Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 0-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

BioLink U-Match MatchBook v.3.5

Click to zoom

Scanner Name BioLink U-Match MatchBook v.3.5 Manufacturer BioLink Solutions Connection USB 2.0 Resolution 500 dpi Size 45 x 63 x 26 mm (1.8" x 2.5" x 1.0") Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9") Supported OS Microsoft Windows (32bit), Linux (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Testech Bio-i

Click to zoom

Scanner Name Bio-i Manufacturer Testech, Inc. Connection USB Resolution 500 dpi Size 65 x 65 x 32 mm (2.6" x 2.6" x 1.3") Image capture area (Platen size) 15 x 18 mm (0.6" x 0.7") Supported OS Microsoft Windows (32bit) Operating temperature -10°C ~ +50°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Startek FM200 scanner

Click to zoom

Scanner Name FM200 Fingerprint Verification Module Manufacturer Startek Engineering Inc. Connection USB Resolution 500 dpi Size 80 x 41 x 40 mm (3.1" x 1.6" x 1.6") Image capture area (Platen size) 12.7 x 12.7 mm (0.5" x 0.5") Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

Tacoma CMOS Scanner

Click to zoom

Scanner Name Tacoma CMOS Scanner Manufacturer Tacoma Technology Inc. Connection USB Resolution 500 dpi Size 80 x 45 x 35 mm (3.1" x 1.8" x 1.4") Image capture area (Platen size) 13 x 13 mm (0.5" x 0.5") Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X Operating temperature 0°C ~ +70°C

This scanner can operate with MegaMatcher 2.1 SDK, VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

Fujitsu MBF200

Click to zoom

Scanner Name Fujitsu MBF200 Scanner Manufacturer Tacoma Technology Inc. and Fujitsu Microelectronics America, Inc. Connection USB Resolution 500 dpi Size 60 x 40 x 15 mm (2.4" x 1.6" x 0.6") Image capture area (Platen size) 12.8 x 15 mm (0.5" x 0.6") Fingerprint image size 256 x 300 pixels Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X Operating temperature -20°C ~ +45°C

This scanner can operate with MegaMatcher 2.1 SDK, VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

Identix DFR 2080

Click to zoom

Scanner Name Identix DFR 2080 Manufacturer Identix Inc. Connection USB 2.0 Resolution 500 dpi Size 76 x 38 x 83 mm (3.0" x 1.5" x 3.3") Image capture area (Platen size) 15 x 15 mm (0.6" x 0.6") Fingerprint image size 248 x 292 pixels Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 0-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Identix DFR 2090

This scanner is intended for professional use. The image output is in USB digital and RS-170 analog video formats.

Click to zoom

Scanner Name Identix DFR 2090 Manufacturer Identix Inc. Connection USB, Analog (RS-170) Resolution 500 dpi Size 138 x 71 x 189 mm (5.5" x 2.8" x 7.5") Image capture area (Platen size) 20.3 x 25.4 mm (0.8" x 1.0") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C Operating humidity 0-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Identix DFR 2100

Click to zoom

Scanner Name Identix DFR 2100 Manufacturer Identix Inc. Connection USB 2.0 Resolution 500 dpi Size 113 x 71 x 185 mm (4.4" x 2.8" x 7.3") Image capture area (Platen size) 26.7 x 26.7 mm (1.05" x 1.05") Fingerprint image size 720 x 720 pixels Supported OS Microsoft Windows (32bit) Operating temperature 5°C ~ +35°C Operating humidity 20-80 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

TST Biometrics BiRD 3

TST Biometrics offers its touchless sensor technology that allows to scan a finger without physical contact with a fingerprint sensor. The BiRD 3 sensor is available as desktop scanner, on-wall mounted scanner and as OEM components. Optionally, a 5V AC powered heating device could be included for operating in cold environment.

Click to zoom

Scanner Name BiRD 3 Manufacturer TST Biometrics Connection USB 2.0 Resolution 500 dpi Size 75 x 85 x 80 mm (3.0" x 3.3" x 3.1") Image capture area (Platen size) 16 x 19 mm (0.6" x 0.7") Fingerprint image size 480 x 640 pixels Supported OS Microsoft Windows (32bit) Operating temperature +5°C ~ +50°C -20°C ~ +50°C with optional heating device

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Digent Izzix FD1000

Click to zoom

Scanner Name Digent Izzix FD1000 Manufacturer Digent Co. Ltd. Connection USB Resolution 500 dpi Size 55 x 84 x 42 mm (2.2" x 3.3" x 1.7") Image capture area (Platen size) 16.0 x 19.0 mm (0.6" x 0.7") Fingerprint image size 280 x 320 pixels Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

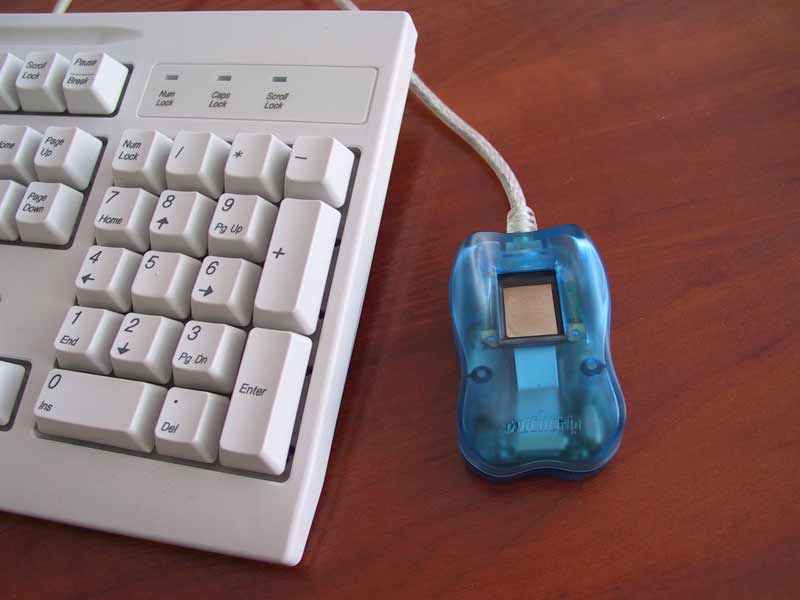

UPEK TouchChip TCRU1C

This scanner is built on the TouchChip Silicon Fingerprint Sensor. It communicates PC via USB port.

Click to zoom Click to zoom

Scanner Name UPEK TouchChip TCRU1C Manufacturer UPEK, Inc. Connection USB 1.1 Resolution 508 dpi Size 44 x 69 x 23 mm (1.7" x 2.7" x 0.9") Image capture area (Platen size) 12.8 x 18.0 mm (0.5" x 0.7") Fingerprint image size 256 x 360 pixels Supported OS Microsoft Windows (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

UPEK TouchChip TCRU2C

Click to zoom

Scanner Name UPEK TouchChip TCRU2C Manufacturer UPEK, Inc. Connection USB 1.1 Resolution 508 dpi Size 44 x 69 x 23 mm (1.7" x 2.7" x 0.9") Image capture area (Platen size) 10.4 x 14.4 mm (0.4" x 0.6") Fingerprint image size 208 x 288 pixels Supported OS Microsoft Windows (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Green Bit DactyScan 26

Click to zoom

Scanner Name DactyScan 26 Manufacturer Green Bit S.p.A. Connection USB 2.0 Resolution 500 dpi Size 60 x 100 x 41 mm (2.4" x 3.9" x 1.6") Image capture area (Platen size) 25.4 x 25.4 mm (1.0" x 1.0") Supported OS Microsoft Windows (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Hongda S680

This scanner allows to scan rolled fingerprints. A plastic lid can be mounted on top of sensor for more comfortable flat fingerprint scanning.

Click to zoom

Scanner Name Hongda S680 Manufacturer Hongda Opto-Electron Co., Ltd. Connection USB 2.0 Resolution 500 dpi Size 142 x 120 x 77 mm (5.6" x 4.7" x 3.0") Image capture area (Platen size) 40 x 40 mm (1.6" x 1.6") Supported OS Microsoft Windows (32bit) Operating temperature -18°C ~ +54°C Operating humidity 10-85 %

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

BiometriKa FX 2000

BiometriKa FX 2000 desktop fingerprint scanner is intended for using with PC. Scanner communicates PC via USB interface. FX 2000 contains 32 bit RISC processor for encrypting fingerprint data, controlling scanner operations and other operations.

Click to zoom Click to zoom

Scanner Name FX 2000 Manufacturer BiometriKa srl Connection USB Resolution 569 dpi Size 122 x 73 x 61 mm (4.80" x 2.87" x 2.40") Image capture area (Platen size) 13.2 x 25.0 mm (0.5" x 1.0") Fingerprint image size 296 x 560 pixels Supported OS Microsoft Windows (32bit), Linux (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

BiometriKa FX 3000

Click to zoom

Scanner Name FX 3000 Manufacturer BiometriKa srl Connection USB Resolution 569 dpi Size 122 x 73 x 61 mm (4.80" x 2.87" x 2.40") Image capture area (Platen size) 17.8 x 25.0 mm (0.7" x 1.0") Fingerprint image size 400 x 560 pixels Supported OS Microsoft Windows (32bit), Linux (32bit)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

BiometriKa HiScan

Click to zoom

Scanner Name HiScan Manufacturer BiometriKa srl Connection USB Resolution 500 dpi Size 116 x 90 x 60 mm (4.6" x 3.5" x 2.4") Image capture area (Platen size) 25.4 x 25.4 mm (1.0" x 1.0") Fingerprint image size 500 x 500 pixels Supported OS Microsoft Windows (32bit), Linux (32bit) Operating temperature 5°C ~ +45°C Operating humidity 10-90 % (non-condensing)

This scanner can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

Lumidigm Venus Series sensors

Click to zoom

Sensor Name Lumidigm Venus Series Biometric Sensors Manufacturer Lumidigm, Inc. Resolution 500 dpi Sensor Size 83 x 84 x 57 mm (3.26" x 3.32" x 2.26") Image capture area (Platen size) 17.78 x 27.94 mm (0.7" x 1.1") Supported OS Microsoft Windows (32bit) Operating temperature 0°C ~ +40°C

This sensor can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

id3 Certis Image

An Atmel FingerChip based scanner with a sweeping thermal sensor.

Click to zoom

Scanner Name Certis Image Manufacturer id3 Semiconductors Connection USB 1.1 Resolution 500 dpi Size 49 x 67 x 34 mm (1.9" x 2.6" x 1.3") Image capture area (Platen size) 0.4 x 14 mm (0.02" x 0.55") Supported OS Microsoft Windows (32 bit) Operating temperature 0°C ~ +50°C

This sensor can operate with MegaMatcher 2.1 SDK and VeriFinger 6.0 (requires Standard SDK or Extended SDK).

CS-Pass USB Fingerprint Sensor

The CS-Pass USB Fingerprint Sensor is based on AuthenTec AES4000 sensor. It is suitable for PC and mobile devices, including battery powered devices. The sensor can be customized for specific projects.

Click to zoom

Sensor Name CS-Pass Fingerprint Sensor Manufacturer BiometriCS Ltd. Resolution 250 dpi Sensor Size 20 x 20 x 1.5 mm (0.79" x 0.79" x 0.06") Image capture area (Platen size) 9.75 x 9.75 mm (0.38" x 0.38") Fingerprint image size 96 x 96 pixels Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X Operating temperature -20°C ~ +70°C

This sensor can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

EntréPad AES2501B (USB)

Click to zoom

Sensor Name EntréPad AES2501B Manufacturer AuthenTec, Inc. Resolution 500 dpi Sensor Size 13.8 x 5.0 x 1.3 mm (0.54" x 0.20" x 0.05") Image capture area (Platen size) 9.75 x 0.08 mm (0.38" x 0.003") Fingerprint image frame size 192 x 16 pixels Supported OS Microsoft Windows (32bit), Linux (32bit) Operating temperature 0°C ~ +70°C

This scanner can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK).

EntréPad AES4000 (USB)

The AES4000 fingerprint sensor is suitable for PC and mobile devices. Sensor's small size and low power is ideally suited for battery powered devices.

Click to zoom Click to zoom

Sensor Name EntréPad AES4000 Manufacturer AuthenTec, Inc. Resolution 250 dpi Sensor Size 20 x 20 x 1.5 mm (0.79" x 0.79" x 0.06") Image capture area (Platen size) 9.75 x 9.75 mm (0.38" x 0.38") Fingerprint image size 96 x 96 pixels Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X Operating temperature -20°C ~ +70°C

This sensor can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

FingerLoc AF-S2 (USB)

The AF-S2 fingerprint sensor is suitable for the embedded devices.

Click to zoom Click to zoom

Sensor Name FingerLoc AF-S2 Manufacturer AuthenTec, Inc. Resolution 250 dpi Sensor Size 24 x 24 x 3.5 mm (0.94" x 0.94" x 0.14") Image capture area (Platen size) 13 x 13 mm (0.51" x 0.51") Fingerprint image size 128 x 128 pixels Supported OS Microsoft Windows (32bit), Linux (32bit and 64bit), Mac OS X Operating temperature -20°C ~ +70°C

This sensor can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK) and FingerCell 2.1 (requires Library EDK or source code EDK).

LTT-C500 Fingerprint Sensor

Click to zoom

Sensor Name LTT-C500 Fingerprint Sensor Manufacturer LighTuning Technology Inc. Resolution 508 dpi Chip Size 12.8 x 10 mm (0.5" x 0.4") Image capture area (Platen size) 11.8 x 9.6 mm (0.46" x 0.38") Fingerprint image size 236 x 192 pixels Supported OS Microsoft Windows (32bit) Operating temperature -40°C ~ +80°C Operating humidity 0-85 % (non-condensing)

This sensor can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK).

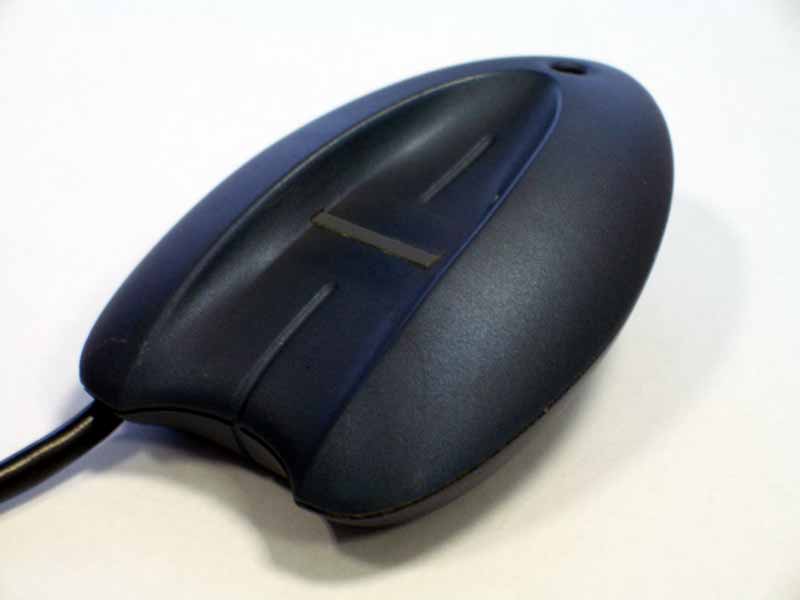

Atmel FingerChip

Please note, that Atmel FingerChip is a whole family of fingerprint sensors. Probably, chip dimensions and image capture area could be different from the presented specifications. Anyway, Neurotechnology's software could be used with any chip from the FingerChip family.

Click to zoom

Sensor Name Atmel FingerChip Manufacturer Atmel Corp. Resolution 500 dpi Chip Size 1.7 x 17.3 mm (0.07" x 0.70") Image capture area (Platen size) 0.4 x 14 mm (0.02" x 0.55") Fingerprint image frame size 8 x 280 pixels Supported OS Microsoft Windows (32bit) Operating temperature -40°C ~ +85°C

This sensor can operate with VeriFinger 6.0 (requires Standard SDK or Extended SDK).
