Suprema SFR300-S

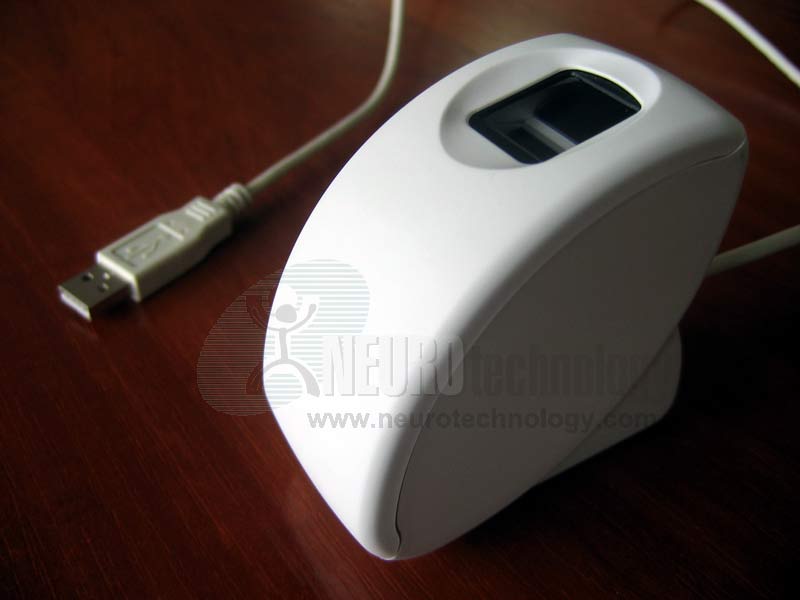

General view
Suprema SFR300-S fingerprint scanner, general view
Click to zoom

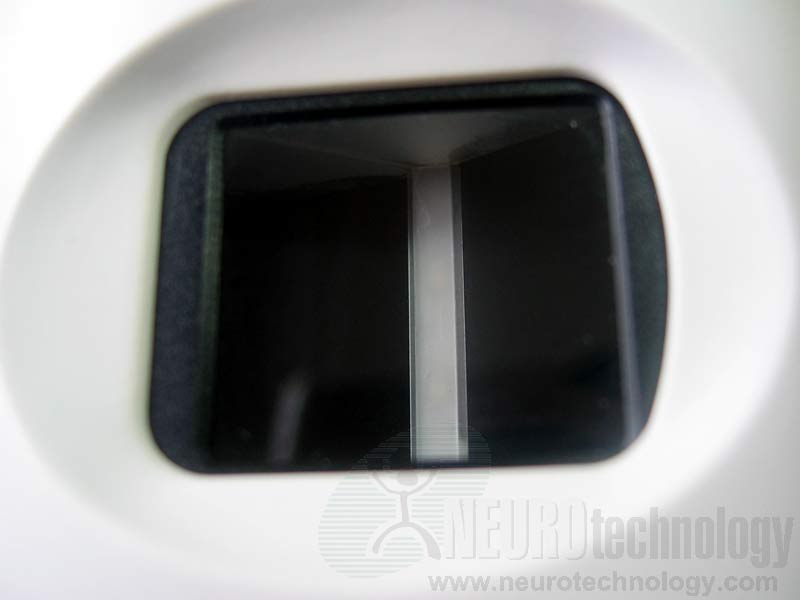

Close-up on sensor
Close-up on Suprema SFR300-S fingerprint sensor
Click to zoom

Suprema SFR300-S is an optical USB 2.0 fingerprint scanner.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 3.5 SDK, VeriFinger 9.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name SFR300-S
Manufacturer Suprema, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit), Linux (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 16 x 18 mm (0.6" x 0.7")
Fingerprint image size 288 x 288 pixels
Sensor type Optical
Device size 40 x 77 x 71 mm (1.6" x 3.0" x 2.8")
Device weight
(with cable)
130 grams (0.3 lbs)
Operating temperature -10°C ~ +50°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Suprema scanners

Neurotechnology SDKs also include support modules for these Suprema scanners:
