BM7500

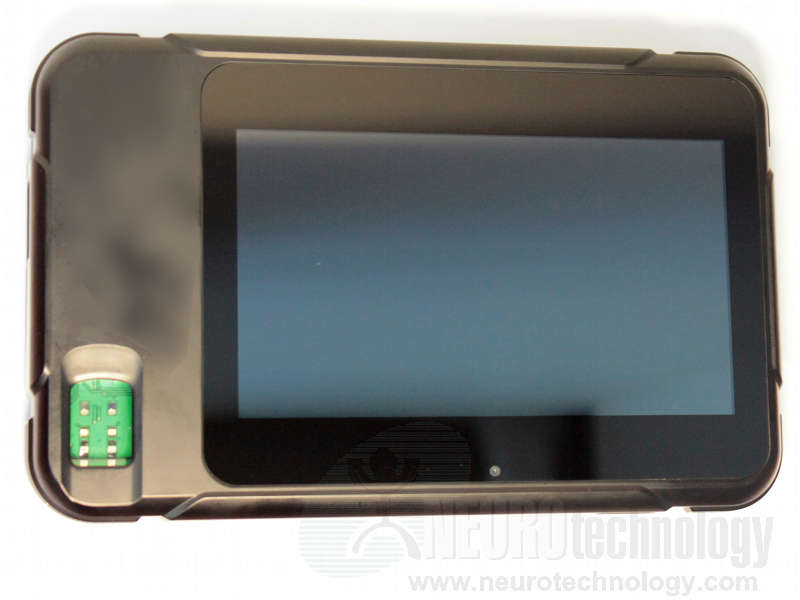

Aratek's BM7500 is a hand-held smart terminal for mobile fingerprints and faces capture.
The device is equipped with an optical fingerprint reader for scanning single fingers, 2 MP front camera and 8 MP rear camera for face or barcode capture.
According to the manufacturer, the device has wireless communication support, which includes 2G/3G networks, Wi-Fi and Bluetooth, as well as GPS navigation. The manufacturer also specifies that the terminal has IP54 dustproof and waterproof casing.
BM7500 is provided with pre-installed Android OS and allows to run custom applications.
Neurotechnology SDKs allow to use the device for fingerprint and face capture:
- MegaMatcher 2025.1 SDK – fingerprint and face capture.
- VeriFinger 2025.1 SDK – fingerprint capture.
- VeriLook 2025.1 SDK – face capture.
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| General | |
|---|---|
| Device Name | BM7500 Fingerprint Smart Terminal |
| Manufacturer | Aratek |
| Connection |
Micro USB Wi-Fi 802.11 b/g/n Bluetooth 4.0 Cellular WCDMA 900/2100 MHz |
| Supported OS (*) | Android 4.4 (pre-installed on device) |
| Device power | Li-ion battery, 6000 mAh |
| Device memory |
1 GB RAM 8 GB Flash microSD (TF) card slot |
| Device size | 235 x 147 x 28 mm (9.3" x 5.8" x 1.1") |
| Device weight | 780 grams (1.7 lbs) |
| Fingerprint reader | |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 16 x 24 mm (0.6" x 0.9") |
| Fingerprint image size | 320 x 480 pixels |
| Sensor type | Optical |
| Face capture camera | |
| Camera resolution | 2 Megapixel (front) 8 Megapixel (rear) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Other Aratek devices
Neurotechnology SDKs also can be used with these Aratek devices:
