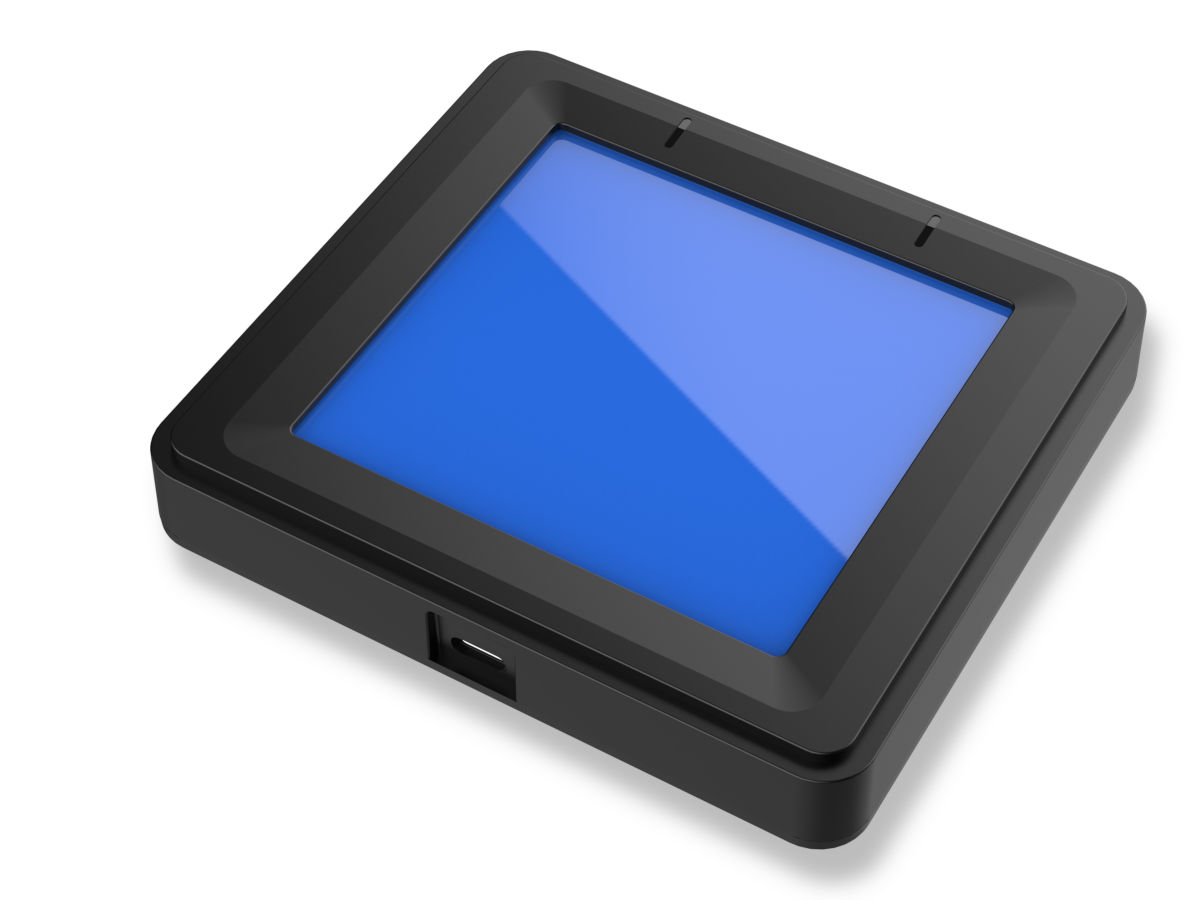

A910
Aratek A910 is an optical 4-4-2 fingerprint module. The device has FBI Appendix F and Mobile ID FAP 60 certification and captures four-finger slaps, single flats, and rolled fingerprints.
The optical sensor is specified for dry, wet, or worn fingers and includes live finger detection. The manufacturer also specifies that the module has IP65 dust and water protection and 9H surface hardness.
Support modules for this device are included in:
at Biometric Supply, a subsidiary of Neurotechnology.
Specifications
| General | |
|---|---|
| Device Name | A910 4-4-2 Fingerprint Module |
| Manufacturer | Aratek |
| Connection | USB 2.0 |
| Supported OS (*) | Android |
| Sensor type | Optical |
| Resolution | 500 ppi |
| Image capture area |
Platen size: 86 x 76 mm
Sensing area: 81 x 76 mm |
| Fingerprint image size | 1600 x 1500 pixels (four-finger slap) 800 x 750 pixels (single flats/rolls) |
| Device size | 118 x 107 x 18 mm (4.6" x 4.2" x 0.7") |
| Device weight | 185 g (6.5 oz) |
| Operating temperature | -20°C ~ +60°C (-4°F ~ 140°F) |
| Operating humidity | 10% - 93% |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
