Umpi TopScan

General view

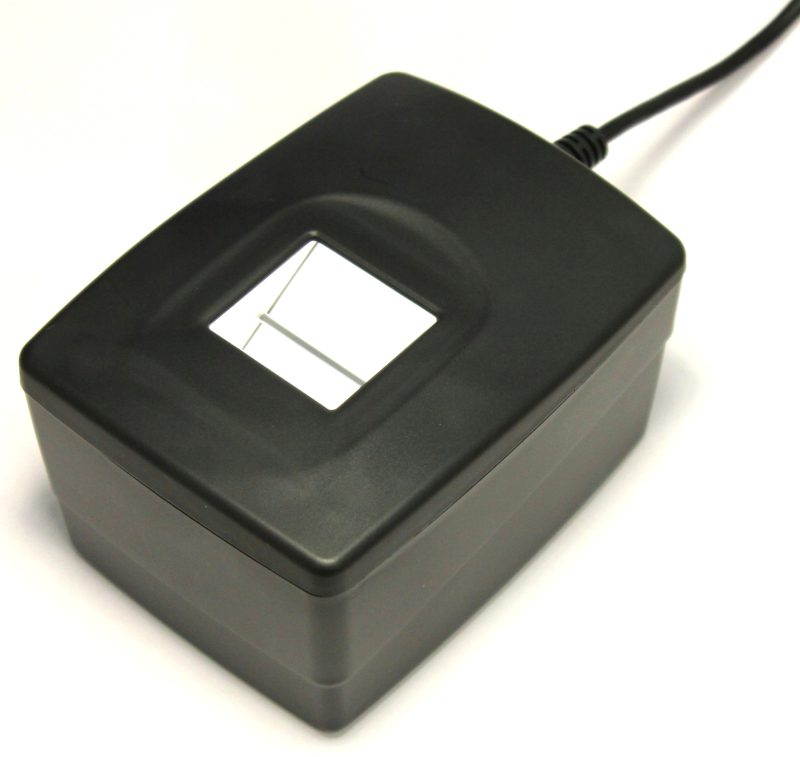

Umpi TopScan fingerprint scanner, general view
Click to zoom

Umpi TopScan is a single fingerprint reader, designed for professional applications. The scanner is certified by the FBI as compliant with PIV-071006 Mobile ID FAP 30 requirements.

The manufacturer specifies that the scanner can capture fingerprint images in 500 ppi and 1000 ppi resolution. Also the device features abrasion resistant fingerprint sensor.

An OEM module is also available for hardware integration.

Support modules for this scanner are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name TopScan
Manufacturer Umpi S.r.l.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 25 x 25 mm (1.0" x 1.0")
Sensor type Optical (FTIR)
Device size 90 x 67 x 118 mm (3.5" x 2.7" x 4.6")
Device weight 250 grams (8.8 oz.)
Operating temperature 5°C ~ +45°C (41°F ~ 113°F)
Operating humidity 10-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Umpi Biometrika scanners

Neurotechnology SDKs also include support modules for these Umpi (Biometrika) devices:
