Umpi (Biometrika) HiScan

General view

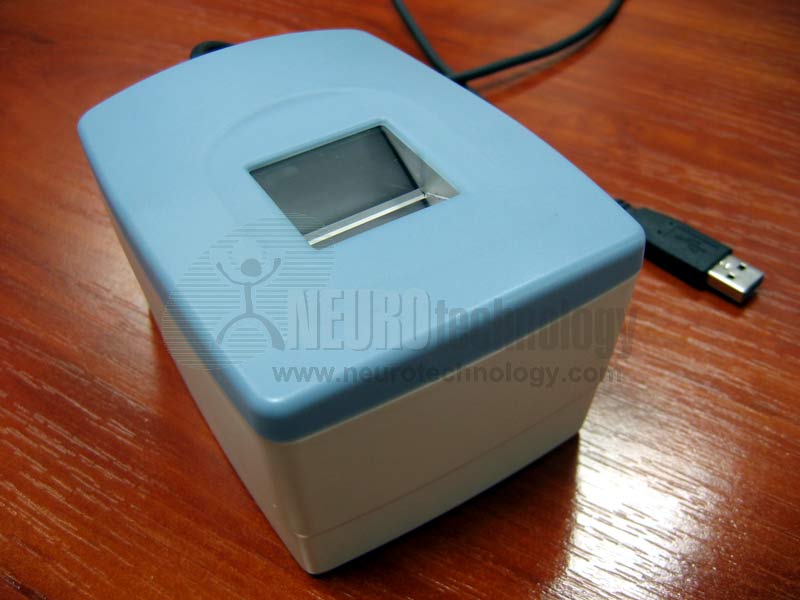

Biometrika HiScan fingerprint scanner, general view
Click to zoom

Close-up on sensor

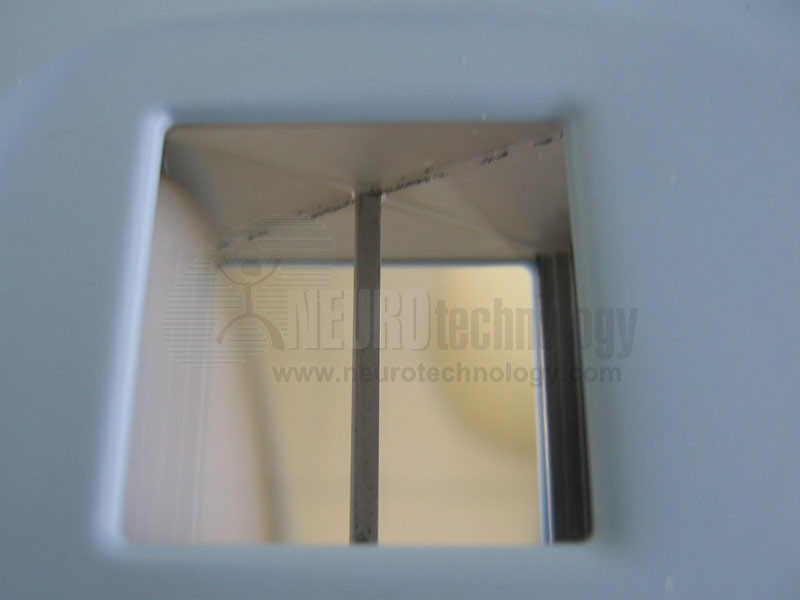

Close-up on Biometrika HiScan fingerprint sensor
Click to zoom

Biometrika HiScan fingerprint scanner from Umpi is an optical USB 2.0 fingerprint scanner intended for professional use. HiScan is certified by FBI as compliant with PIV Image Quality Specifications.

The scanner is available as either a desktop device for end users or as an OEM module for hardware integration. A TWAIN driver for this scanner is available from Biometrika.

Support modules for this scanner are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name HiScan
Manufacturer Umpi S.r.l.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 25 x 25 mm (1.0" x 1.0")
Fingerprint image size 500 x 500 pixels
Sensor type Optical
Device size 116 x 90 x 60 mm (4.6" x 3.5" x 2.4")
Device weight 400 grams (0.9 lbs.)
Operating temperature 5°C ~ +45°C
Operating humidity 10-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Umpi Biometrika scanners

Neurotechnology SDKs also include support modules for these Umpi (Biometrika) devices:
