Miaxis SM-2BU

General view

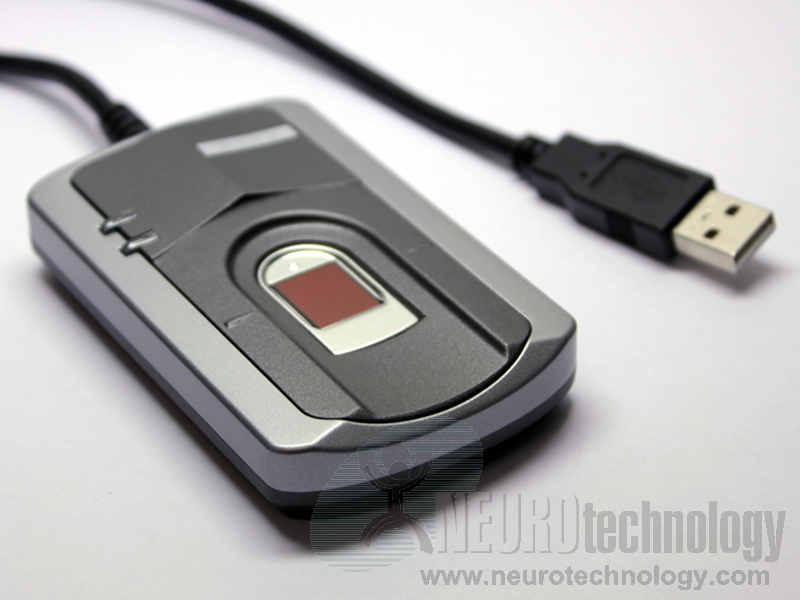

Miaxis SM-2BU (FT-2B) fingerprint scanner, general view
Click to zoom

SM-2BU from Miaxis Biometrics is a capacitive fingerprint reader with USB connection.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name SM-2BU
Manufacturer Miaxis Biometrics
Connection USB 2.0
Supported OS (*) Microsoft Windows (32 bit only)
Resolution 500 ppi
Sensor type Capacitive
Device size 75 x 46 x 6 mm (3.0" x 1.8" x 0.2")
Operating temperature -10°C ~ +50°C
Operating humidity 45-85 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Miaxis scanners

Neurotechnology SDKs also include support modules for these Miaxis scanners:
