Mantra MORPHS

General view

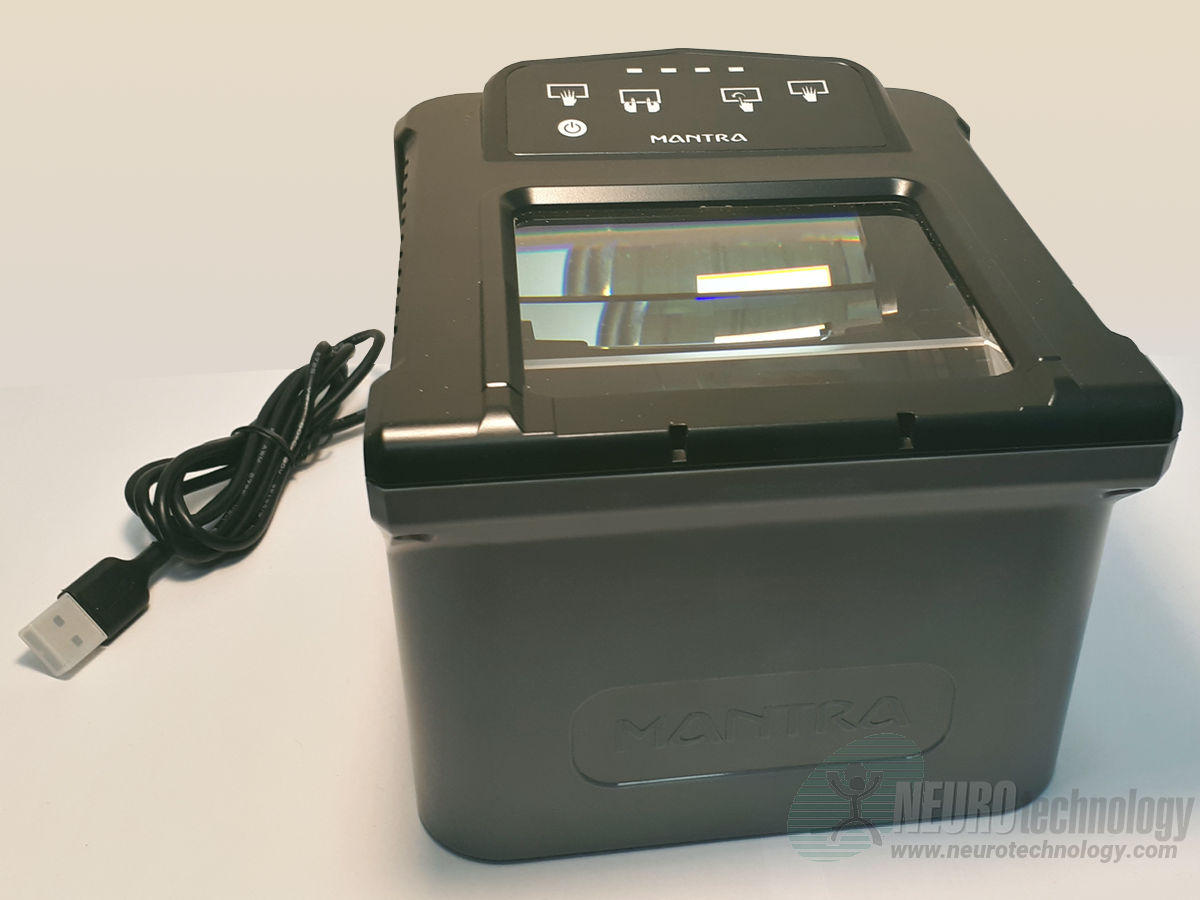

Mantra MORPHS Slap Fingerprint Scanner, general view
Click to zoom

Mantra MORPHS is an optical fingerprint scanner. The scanner allows capturing all ten fingerprints as four-finger slaps and two thumbs. The device has been certified by the FBI as Appendix F Mobile ID FAP 60 compliant.

The manufacturer specifies that the device features IP65-rated water and dust-protected rugged casing.

Support modules for this scanner are included in:

Specifications

Scanner Name MORPHS
Manufacturer Mantra Softech (India) Pvt. Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) Platen size: 90 x 81 mm (3.5" x 3.2")
Sensing Area: 81 x 77 mm (3.2" x 3.0")
Fingerprint image size 1600 x 1500 pixels
Sensor type Optical
Device size 173 x 147 x 121 mm (6.8" x 5.8" x 4.8")
Device weight 1.6 kg (3.6 lbs)
Operating temperature 0°C ~ +50°C (+32°F ~ +122°F)
Operating humidity 10-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Mantra scanners

Neurotechnology SDKs also include support modules for these Mantra scanners:

  • MAPRO-CX – PIV and FAP10 certified single finger scanner with capacitive sensor and IP67 platen surface.
  • MARC10 – PIV and FAP10 certified single finger scanner with capacitive sensor and IP54 casing.
  • MELO31 – PIV-certified single finger scanner with optical sensor and IP65 casing.
  • MFS500 – PIV and FAP10 certified single finger scanner with optical sensor and IP54 casing.
