Mantra MFS500

General view

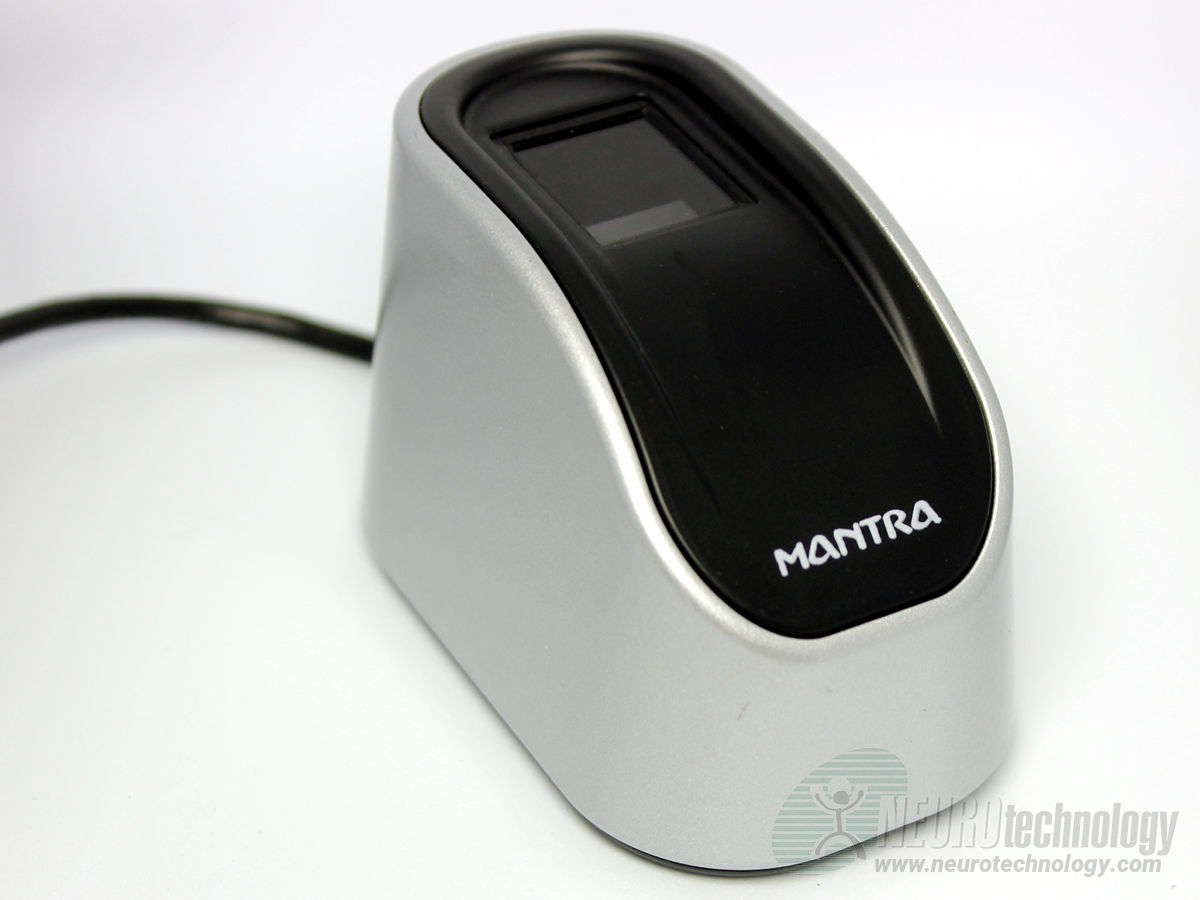

Mantra MFS500 fingerprint reader, general view
Click to zoom

Mantra MFS500 is an optical single fingerprint reader. The device is certified by the FBI as PIV-071006 and Mobile ID FAP 10 compliant.

The manufacturer specifies that the scanner features durable, scratch-free sensor. Also specified dust- and water-proof IP54 casing.

Support modules for this scanner are included in:


Scanner Name MFS500
Manufacturer Mantra Softech (India) Pvt. Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 15 x 18 mm (0.6" x 0.7")
Fingerprint image size 296 x 354 pixels
Sensor type Optical
Device size 85 x 51 x 54 mm (3.3" x 2.0" x 2.1")
Device weight 123 grams (4.3 oz)
Operating temperature 0°C ~ +50°C (+32°F ~ +122°F)
Operating humidity 0-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Mantra scanners

Neurotechnology SDKs also include support modules for these Mantra scanners:

  • MAPRO-CX – PIV and FAP10 certified single finger scanner with capacitive sensor and IP67 platen surface.
