TENBIO TOUCH ONE

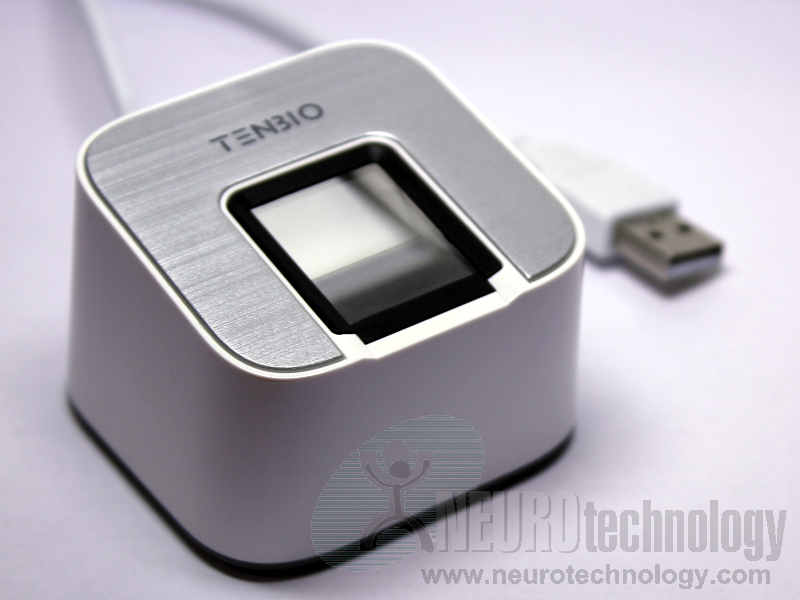

TOUCH ONE from TENBIO is an optical fingerprint reader.
The manufacturer specifies that the scanner produces images which are compliant with FIPS-201 (PIV) requirements. Also the device is specified to feature life finger detection functionality.
Support modules for this scanner are included in:
Specifications
| Scanner Name | TOUCH ONE |
| Manufacturer | TENBIO Biometric Solutions |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32-bit and 64-bit) the 64-bit OS support is limited to 32-bit applications only |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 20 x 25 mm (0.8" x 1.0") |
| Fingerprint image size | 340 x 380 pixels |
| Sensor type | Optical |
| Illumination | Infrared LEDs |
| Device size | 60 x 67 x 48 mm (2.4" x 2.6" x 1.9") |
| Operating temperature | -20°C ~ +50°C |
| Operating humidity | 10 - 90 % (non-condensing) |
