Startek FC320U

General view

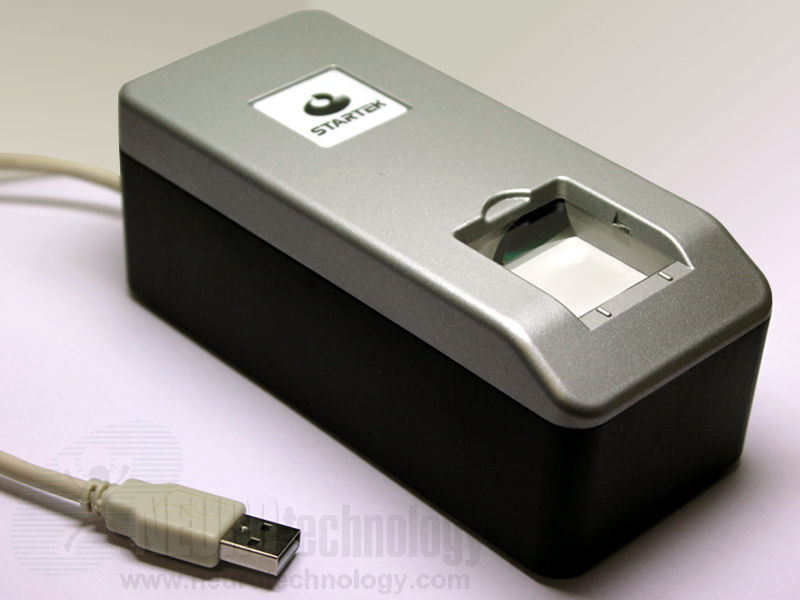

Startek FC320U fingerprint scanner, general view
Click to zoom

Startek FC320U is a PIV-compliant single fingerprint reader. The manufacturer specifies that the optical scanner can capture single rolled and flat fingerprints.

Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name FC320U Single Fingerprint Capture Device
Manufacturer Startek Engineering Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows
the 64 bit OS support is limited to 32 bit applications only
Resolution 500 ppi
Image capture area (Platen size) Physical: 30 x 30 mm (1.2" x 1.2")
Effective: 23 x 23 mm (0.9" x 0.9")
Fingerprint image size 450 x 450 pixels
Sensor type Optical
Device size 145 x 62 x 51 mm (5.7" x 2.4" x 2.0")
Device weight 450 grams (1.0 lbs)
Operating temperature 0°C ~ +45°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Startek scanners

Neurotechnology SDKs also include support modules for these Startek scanners:
