NITGEN eNBioScan-D plus

General view

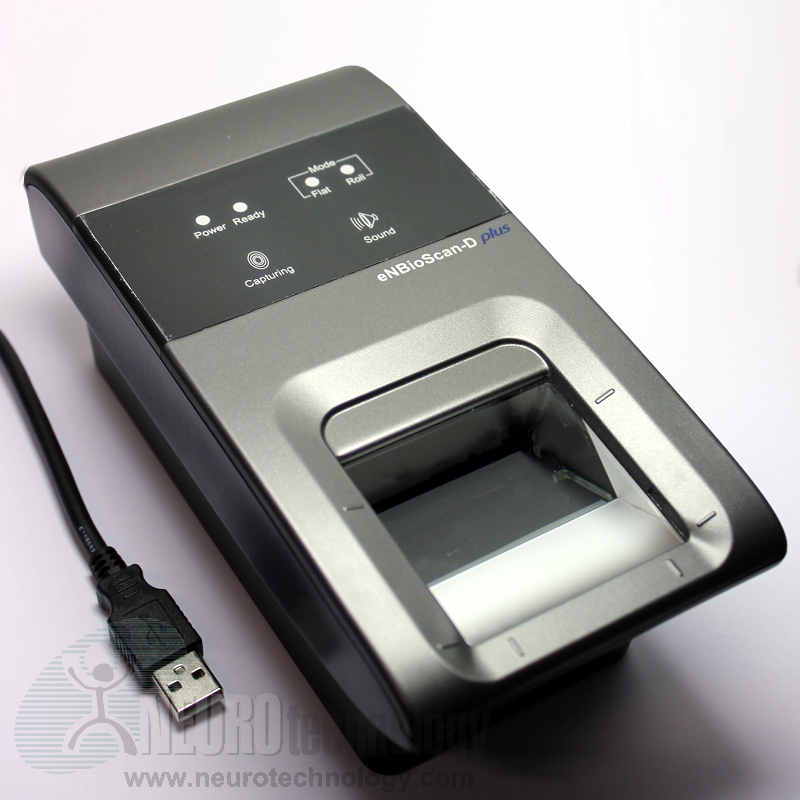

NITGEN eNBioScan-D plus fingerprint scanner, general view
Click to zoom

The eNBioScan-D plus from NITGEN is an optical dual fingerprint scanner. The scanner is able to capture dual or single flat fingerprints, as well as single rolled fingerprints.

The device is Appendix F Mobile ID FAP 45 certified.

Support modules for this scanner are included in MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name eNBioScan-D plus
Manufacturer NITGEN Co., Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 48 x 48 mm (1.9" x 1.9")
Fingerprint image size 952 x 952 pixels (flat / slap)
800 x 750 pixels (rolled)
Sensor type Optical
Device size 73 x 180 x 93 mm (2.9" x 7.1" x 3.7")
Operating temperature -20°C ~ +60°C
Operating humidity 0-90 %

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other NITGEN scanners

Neurotechnology SDKs also include support modules for these NITGEN scanners:
