Lumidigm M-Series (Mercury) sensors

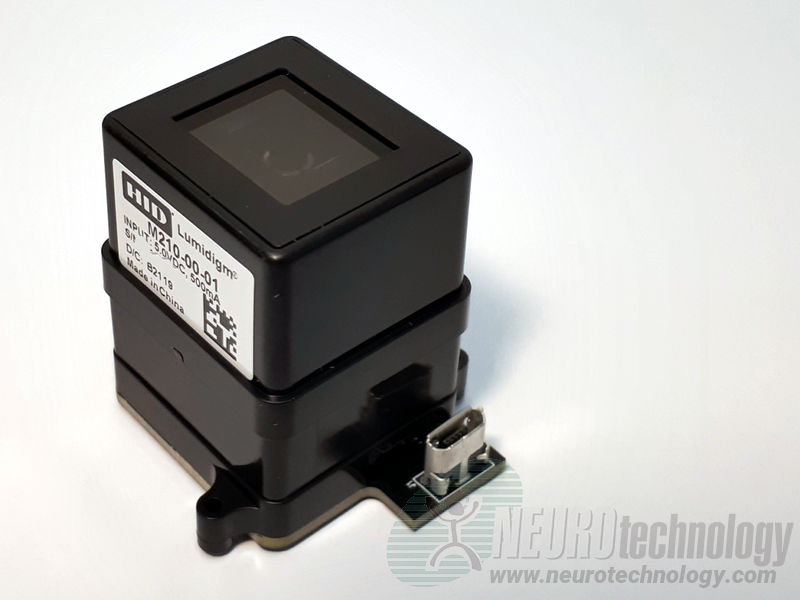

M210 OEM sensor
Lumidigm M210 OEM sensor module
Click to zoom

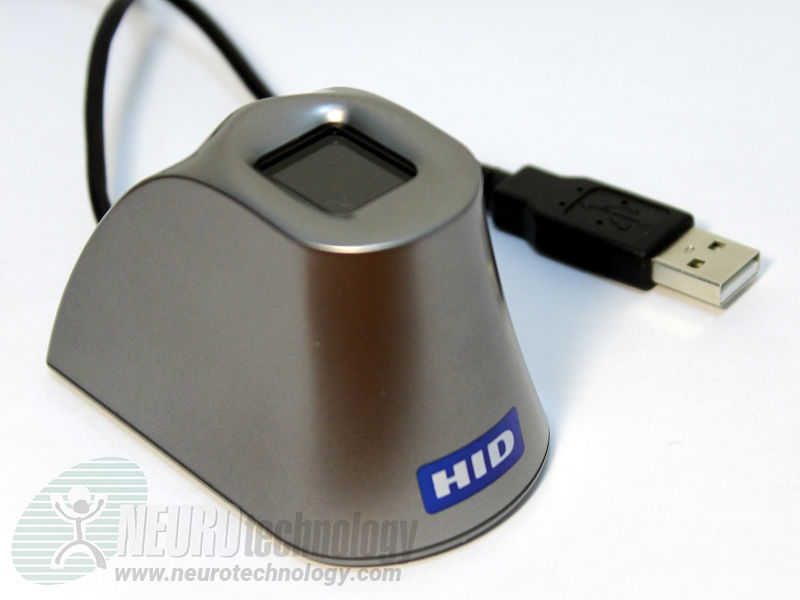

M211 USB scanner
Lumidigm M211 USB fingerprint scanner
Click to zoom


M300 OEM sensor
Lumidigm Mercury M300
Click to zoom

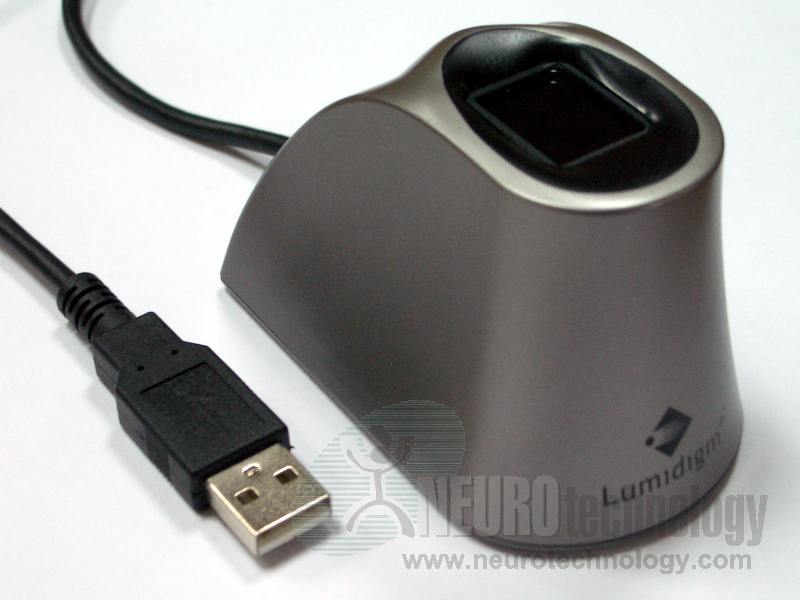

M301 USB scanner
Lumidigm Mercury M301
Click to zoom

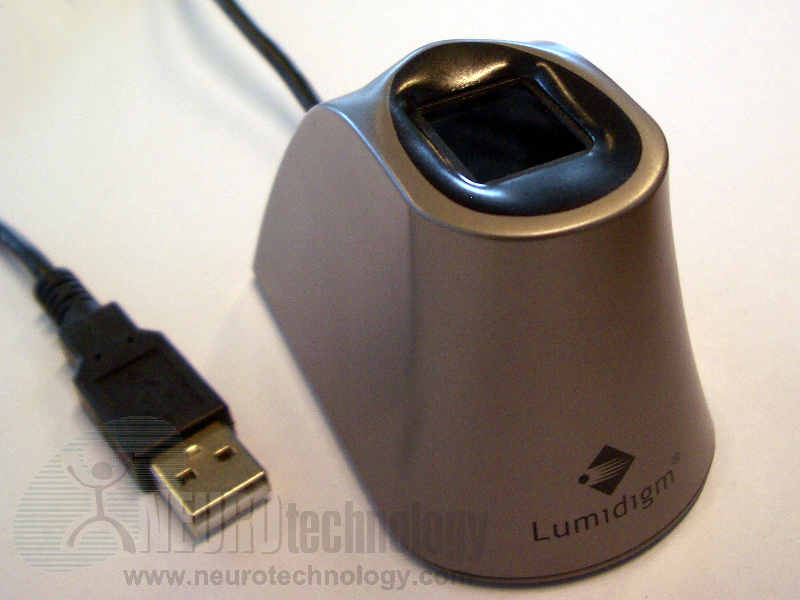

M311 USB scanner
Lumidigm Mercury M311
Click to zoom

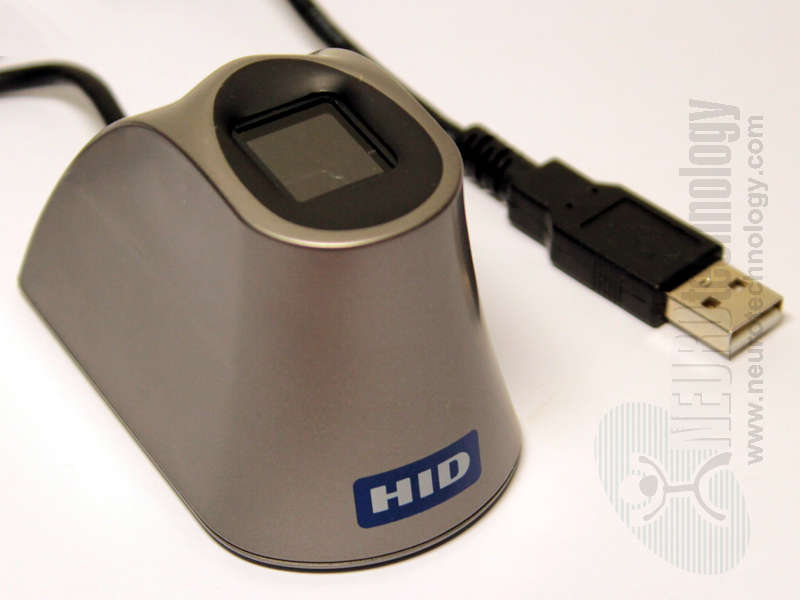

M321 USB scanner
Lumidigm M321
Click to zoom


Lumidigm M-Series fingerprint sensors and scanners include multispectral imaging technology that allows to capture fingerprint images when there are difficulties in distinguishing fingerprint features (dirty, aged, dry, wet, moist or incorrectly placed fingers). Scanner's manufacturer specifies that this technology allows to perform live finger detection to reject fake or spoof fingers.

The M300, M301 and M311 sensors are supported in the MegaMatcher 11.2 SDK, MegaMatcher On Card 11.2 SDK and VeriFinger 12.2 SDK. These devices are not supported in the newer versions of the mentioned SDKs.

The M210, M211 and M321 sensors are supported in the MegaMatcher 12.2 SDK, MegaMatcher On Card 11.2 SDK and VeriFinger 12.2 SDK.

Specifications

Sensor Name Lumidigm M-Series Biometric Sensors
Manufacturer HID Global Corporation
Connection USB 2.0 or RS-232
Supported OS (*) Microsoft Windows (32bit and 64bit), Linux (32bit)
Resolution 500 ppi
Image capture area (Platen size) 14 x 17 mm (0.6" x 0.7")
Sensor type Optical
Illumination Multispectral
Device size 47 x 78 x 52 mm (1.9" x 3.1" x 2.0")
Operating temperature -10°C ~ +60°C (14°F ~ 140°F)
Operating humidity 10-95% RH non-condensing without enclosure
0-100% condensing with IP65 shell

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Neurotechnology Solution Partners use this scanner in

Lumidigm M-Series sensors are used in these systems, created by Neurotechnology Solution Partners:

  • Anaxee-Neurotech Attendance – an access and attendance control system developed by Anaxee Technologies Pvt. Ltd.
  • RobotID – a generic biometric identification system created by Computer ID.
  • TouchClock – an attendance control system created by Computer ID.
  • TouchAccess – an access control system created by Computer ID.

Other Lumidigm scanners

Neurotechnology SDKs also include support modules for these Lumidigm scanners:
