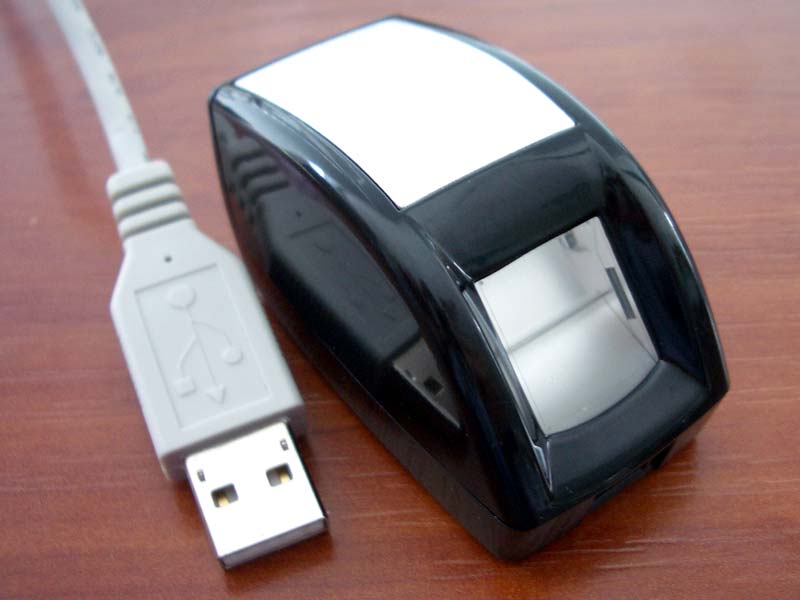

Jstac Athena 210
Athena 210 from Jstac Corporation is an optical fingerprint scanner with USB connection. The scanner includes image auto-calibration technology that allows to scan wet or dry fingerprints.
Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 3.5 SDK, VeriFinger 9.0 SDK and Free Fingerprint Verification SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 12.1 SDK, MegaMatcher On Card 11.2 SDK and VeriFinger 12.1 SDK.
Specifications
| Scanner Name | Athena 210 |
| Manufacturer | Jstac Corporation |
| Connection | USB |
| Supported OS (*) | Microsoft Windows (32bit) |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 13 x 16 mm (0.5" x 0.6") |
| Fingerprint image size | 256 x 320 pixels |
| Sensor type | Optical |
| Device size | 68 x 27 x 28 mm (2.7" x 1.1" x 1.0") |
| Device weight | 65 grams (0.1 lbs) |
| Operating temperature | +20°C ~ +85°C |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
