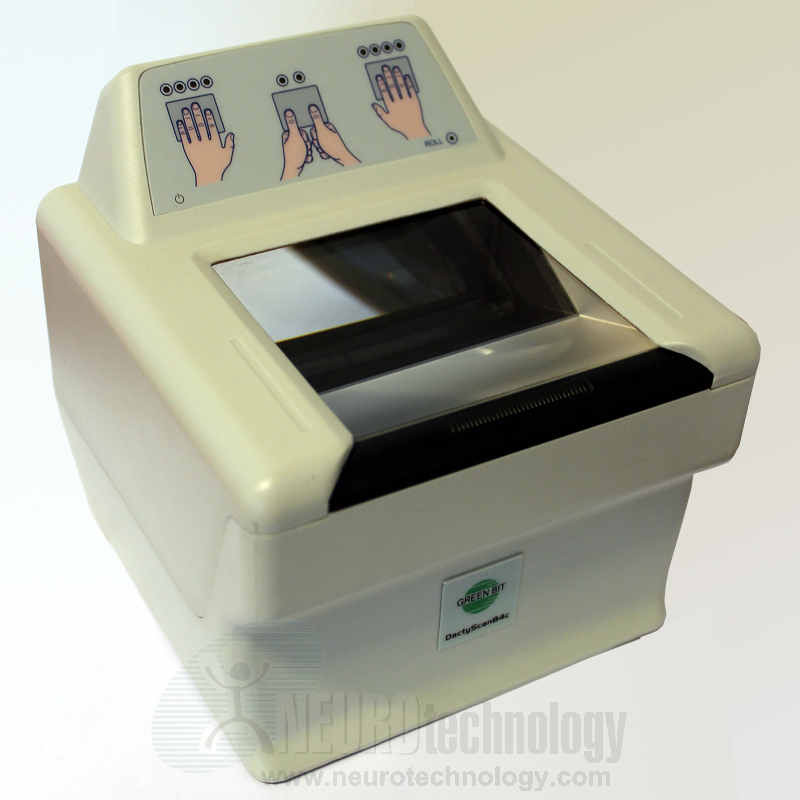

Green Bit DactyScan84c
DactyScan84c from Green Bit is an optical live fingerprint reader with large platen. The reader is capable to capture 4-slap and 2-thumbs fingerprints, allowing to collect all 10 fingerprints using 4+4+2 method. Also the DactyScan84c can capture single rolled and flat fingerprints.
The device is certified by FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F. Also it is compliant with ANSI/NIST-ITL-1-2007, ANSI/NIST-ITL-1-2000 and ISO/IEC 19794-4 standards.
Support modules for this scanner are included in MegaMatcher 12.3 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.3 SDK.
Specifications
| Scanner Name | DactyScan84c |
| Manufacturer | Green Bit S.p.A. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32-bit and 64-bit) Linux (32-bit and 64-bit) Android |
| Resolution | 500 ppi |
| Image capture area (Platen size) | 81 x 76 mm (3.2" x 3.0") |
| Sensor type | Optical |
| Device size | 148 x 152 x 148 mm (5.8" x 6.0" x 5.8") |
| Device weight | 1.4 kg (3.1 lbs.) |
| Operating temperature | 0°C ~ +50°C |
| Operating humidity | 10% ~ 90% (non-condensing) |
* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
Where to order this device?
Buy Green Bit DactyScan84c at Biometric Supply – a subsidiary of Neurotechnology.
Other Green Bit scanners
Neurotechnology SDKs also include support modules for these fingerprint scanners from Green Bit:
