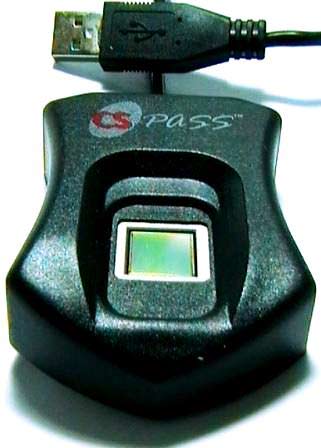

CS-Pass USB Fingerprint Authenticator

General view
CS-Pass USB Fingerprint Sensor
Click to zoom

The CS-Pass USB Fingerprint Authenticator scanner from BiometriCS Ltd is based on capacitive AuthenTec AES4000 sensor.

Scanner's manufacturer specifies that CS-Pass is able to perform live fingerprint detection and scans dry, worn, dirty or other problematic fingers.

Support modules for this sensor were included in MegaMatcher 5.1 SDK, MegaMatcher On Card 3.4 SDK and VeriFinger 7.1 SDK.

Support modules for this device are not included in the newer versions of the MegaMatcher family SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.


Scanner Name CS-Pass Fingerprint Authenticator
Manufacturer BiometriCS Ltd.
Connection USB
Supported OS (*) Microsoft Windows
Resolution 250 ppi
Image capture area (Platen size) 10 x 10 mm (0.4" x 0.4")
Fingerprint image size 96 x 96 pixels
Sensor type Capacitive

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
