BioID BioSlap

General view

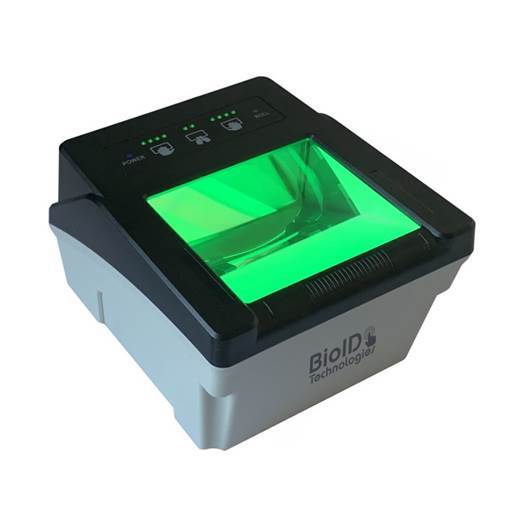

BioID BioSlap fingerprint scanner, general view
Click to zoom

BioSlap from BioID Technologies is a fingerprint scanning device which is capable to capture tenprints (as 4+4+2 slaps), as well as single rolled or flat fingerprints. The scanner is certified by FBI as IAFIS IQS Appendix F compliant.

The manufacturer specifies that the device has sealed IP54 rated casing.

Support modules for this scanner are included in MegaMatcher 11.1 SDK, MegaMatcher On Card 11.1 SDK and VeriFinger 11.1 SDK.

Specifications

Scanner Name BioID BioSlap
Manufacturer BioID Technologies Ltd.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
the 64-bit OS support is limited to 32-bit applications only
Resolution 500 ppi
Platen size 90 x 85 mm (3.5" x 3.3")
Image capture area (Active platen size) 81 x 76 mm (3.2" x 3.0")
Sensor type Optical
Device size 150 x 150 x 130 mm (5.9" x 5.9" x 5.1")
Device weight
(without power supply)
1.6 kg (3.5 lbs)
Operating temperature 0°C ~ +50°C (32°F ~ 122°F)
Operating humidity 10 % - 90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
