IriMagic 1000BK

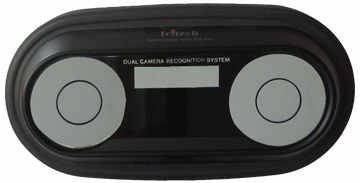

IriMagic 1000BK is a dual iris camera manufactured by Iritech.
The camera uses infrared LED for eye illumination and can be used both indoor and outdoor. The manufacturer specifies that the captured iris images are ISO/IEC 19794-6 compliant.

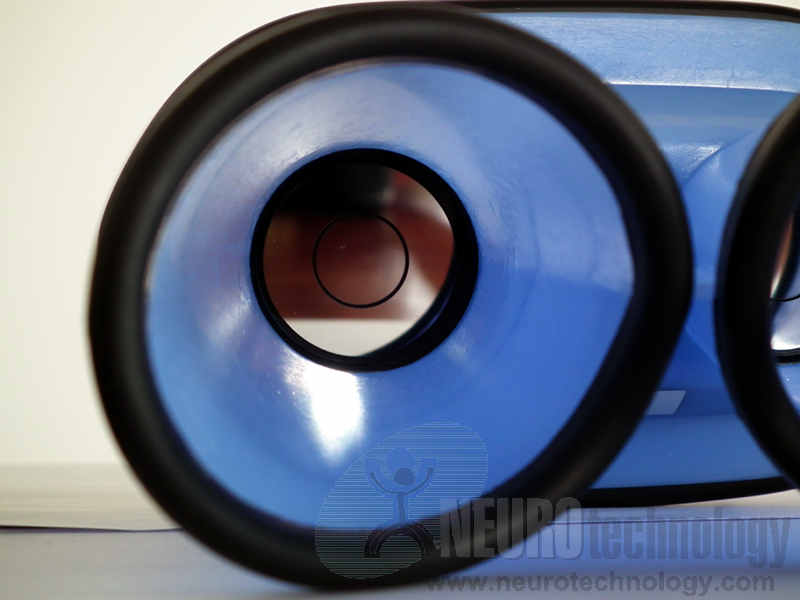

The USB-powered camera is suitable for using in both desktop and mobile solutions. IriMagic cameras are available with external goggle-shaped case which ensures optimal iris capture distance. Also, an IP54 sealed casing can be provided for the camera.
Support modules for this device were included in the MegaMatcher 12.4 SDK, MegaMatcher On Card 12 SDK and VeriFinger 12.4 SDK.
Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.0 SDK, MegaMatcher On Card 13.0 SDK and VeriFinger 13.0 SDK.
Specifications
| Device Name | IriMagic™ 1000BK |
| Manufacturer | Iritech, Inc. |
| Connection | USB 2.0 |
| Supported OS (*) | Microsoft Windows (32 bit only) |
| Iris capture distance | 12.0 - 17.0 cm (4.7" - 6.7") |
| Iris image size | 640 x 480 pixels for each iris |
| Eye illumination | Infrared |
| Device size |
Camera module: 117 x 56 x 39 mm (4.6" x 2.2" x 1.5") Camera with IP54 case: 122 x 60 x 40 mm (4.8" x 2.4" x 1.6") Camera with goggles: 195 x 146 x 83 mm (7.7" x 5.7" x 3.3") |
| Operating temperature | 0 °C .. +50 °C |
| Operating humidity | 0-90 % (non-condensing) |
* This value is obtained when using Neurotechnology products. Device manufacturers may specify different value for this specification.
Other Iritech devices
Neurotechnology SDKs also include support modules for:
- IriShield USB MK2120U – compact, single iris camera.
- IriShield USB BK2121U – dual iris camera.
