Supported eye iris scanners

We are always looking for scanners' manufacturers to include the support for their eye iris scanners to our products. Please, contact us for more details.

List of supported eye iris scanners and capture devices

These iris scanners and sensors are supported by our biometric products. Please, click on a device name to view more information about it.

Cross Match I Scan 2

Buy I Scan 2
at Biometric Supply,

a subsidiary of Neurotechnology.

Cross Match I Scan 2, view on folded device
Click to zoom


Cross Match I Scan 2, view on unfolded device
Click to zoom


Cross Match I Scan 2, closer view on sensors and visor
Click to zoom


Cross Match I Scan 2 is a dual iris capture scanner with USB connection. Scanner's design makes it suitable for using in mobile solutions.

The scanner is able to produce ANSI INCITS 379-2004 and ISO/IEC 19794-6 compliant eye iris images.

This device can operate with VeriEye 2.2 SDK.

Specifications:

Name I Scan 2
Manufacturer Cross Match Technologies Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Sensors 2 x 1.3 Megapixel cameras
Iris image size 2 images, 480 x 480 pixels each
Eye illumination Near-infrared
Device size (Folded) 152 x 152 x 48 mm (6.0" x 6.0" x 1.9")
Device weight 0.5 kg (1.1 lbs)
Operating emperature range 0°C ~ +49°C
Operating humidity range 10-90 % (non-condensing)

Retica Mobile-Eyes

Buy Mobile-Eyes
at Biometric Supply,

a subsidiary of Neurotechnology.

Retica Mobile-Eyes, top-back view
Click to zoom


Retica Mobile-Eyes, top-front view
Click to zoom


Retica Mobile-Eyes, closer view on sensors and through the device
Click to zoom


Retica Mobile-Eyes is a mobile dual iris capture scanner with USB connection. Scanner's robust design makes it suitable for using in harsh environments.

The scanner is able to produce ANSI INCITS 379-2004 compliant eye iris images.

This device can operate with VeriEye 2.2 SDK.

Specifications:

Name Mobile-Eyes
Manufacturer Retica Systems, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Iris image size 2 images, 752 x 480 pixels each
Eye illumination Near-infrared
Device size 175 x 205 x 71 mm (6.9" x 8.1" x 2.8")
Device weight 1.1 kg (2.5 lbs)
Operating emperature range 0°C ~ +49°C

VistaFA2 Iris & Face Camera

Buy VistaFA2
at Biometric Supply,

a subsidiary of Neurotechnology.

VistaFA2, general view
Click to zoom

VistaFA2 is an USB 2.0 biometric device that is able to capture eye iris and face images.

The device produces ISO/IEC 19794-6 compliant iris images and ISO/IEC 19794-5 compliant face images. The manufacturer specifies that automatic iris image acquisition is based on a proprietary distance sensing and focusing technology.

This device can operate with VeriEye 2.2 SDK as iris capture camera, and with VeriLook 4.0 SDK as face capture camera.

Specifications:

Name VistaFA2 Multimodal Iris & Face Camera
Manufacturer Vista Imaging, Inc.
Representative Corvus Integration, Inc
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Iris image size 640 x 480 pixels
Eye illumination Multi wavelength infrared
Device size 94 x 94 x 54 mm (3.7" x 3.7" x 2.1")
Device weight 180 grams (0.4 lbs)

* These operating systems are supported by the VeriEye SDK. Device manufacturers may have different lists of supported operating systems.

Neurotechnology SDKs also include support modules for VistaMT Multimodal Biometric Device that is able to capture fingerprints, faces and irises.

VistaFA2E Iris & Face Camera

VistaFA2E is an USB 2.0 biometric device that is able to capture eye iris and face images. Technically the device is a VistaFA2 in full enclosure suitable for mounting on a wall or door, placing into a kiosk, etc.

The device produces ISO/IEC 19794-6 compliant iris images and ISO/IEC 19794-5 compliant face images. The manufacturer specifies that automatic iris image acquisition is based on a proprietary distance sensing and focusing technology.

This device can operate with VeriEye 2.2 SDK as iris capture camera, and with VeriLook 4.0 SDK as face capture camera.

Specifications:

Name VistaFA2E Multimodal Iris & Face Camera
Manufacturer Vista Imaging, Inc.
Representative Corvus Integration, Inc
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Iris image size 640 x 480 pixels
Eye illumination Multi wavelength infrared
Device size 155 x 200 x 92 mm (6.1" x 7.9" x 3.7")
Device weight 300 grams (0.7 lbs)

* These operating systems are supported by the VeriEye SDK. Device manufacturers may have different lists of supported operating systems.

VistaMT Multimodal Biometric Device

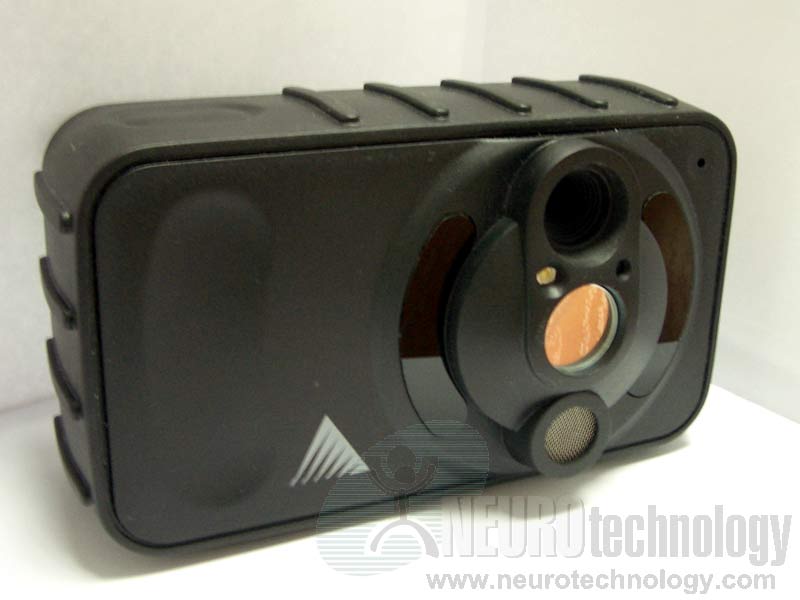

Front view
VistaMT Multimodal Biometric Device, front view
Click to zoom

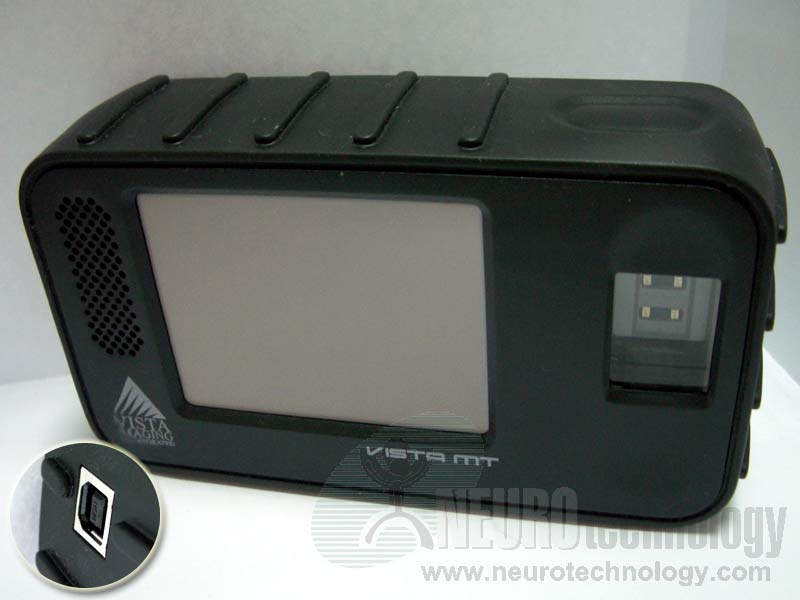

Back view
VistaMT Multimodal Biometric Device, back view
Click to zoom

The VistaMT from Vista Imaging is a multimodal USB 2.0 biometric device that is able to capture face and iris images, fingerprints, audio input and signatures.

Multi wavelength infra-red illumination, distance sensing technology, integrated mirror and LED are used to improve iris images capture. An integrated flash allows to capture faces in low-light environments. The device also includes integrated microphone and speaker that provide 16 KHz 16-bit audio I/O.

Device manufacturer specifies that captured fingerprint images are ISO/IEC 19794-4 compliant, face images are ISO/IEC 19794-5 compliant and iris images are ISO/IEC 19794-6 compliant.

Neurotechnology SDKs allow to use the device for fingerprint, face and iris capture. Support modules for this scanner are included in:

Specifications

General
Device Name VistaMT Multimodal Biometric Device
Manufacturer Vista Imaging, Inc.
Representative Corvus Integration, Inc
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Device size 159 x 92 x 57 mm (6.3" x 3.6" x 2.3")
Device weight 400 grams (0.9 lbs)
Fingerprint scanner
Resolution 500 dpi
Image capture area (Platen size) 20 x 27 mm (0.8" x 1.1")
Sensor type Optical
Iris scanner
Iris image size 640 x 480 pixels
Eye illumination Multi wavelength infrared
Face capture camera
CMOS sensor resolution 3.2 Megapixel
Face image size 2048 x 1536 pixels
Signature capture pad
Resolution 500 dpi
Image capture area 72 x 56 mm (2.9" x 2.2")

* These operating systems are supported by VeriEye SDKs. Device manufacturers may have different lists of supported operating systems.
