L-1 DFR 2090

General view

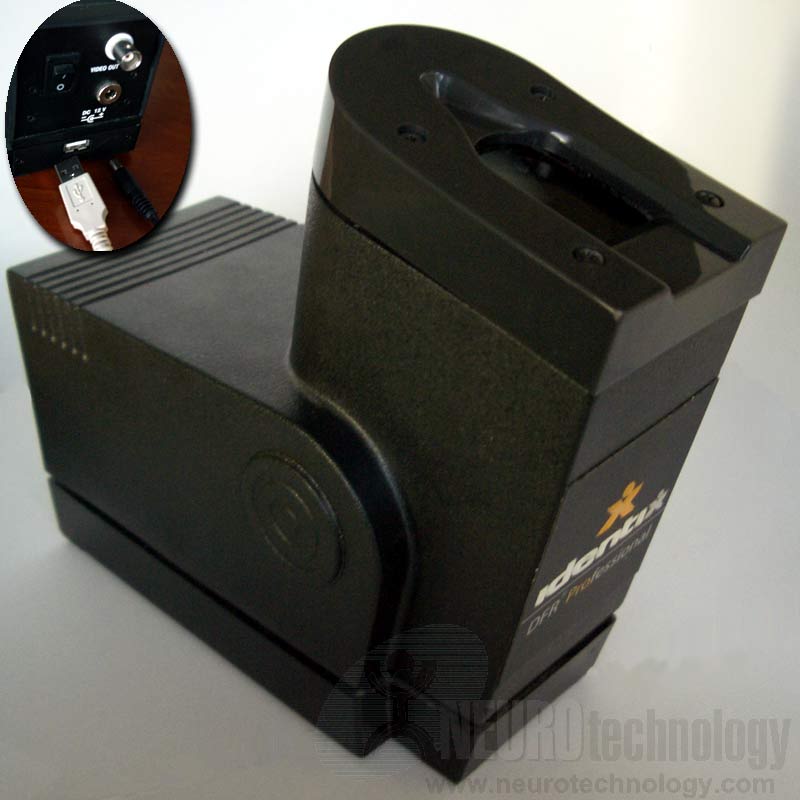

L-1 DFR 2090 fingerprint scanner, general view
Click to zoom


Close-up on sensor

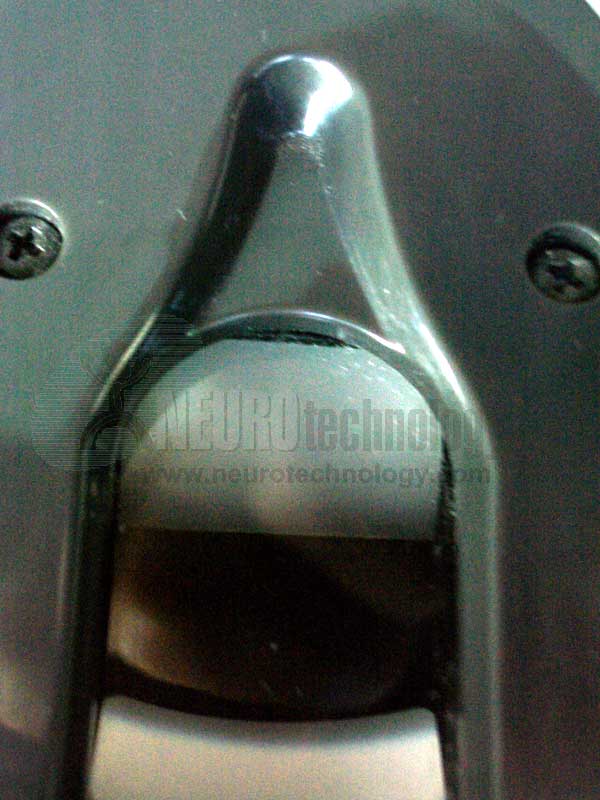

Close-up on L-1 DFR 2090 fingerprint sensor
Click to zoom

DFR 2090 from L-1 Identity Solutions is an optical USB 1.1 fingerprint scanner intended for professional use. The scanner provides a digital USB output and an analog RS-170 video output to support analog-based capture systems and video monitors. Both outputs may be used simultaneously.

Scanner's manufacturer specifies that DFR 2090 protective platen coating and rugged case ensures its long service under heavy use.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name DFR 2090 Professional Direct Fingerprint Reader
Manufacturer L-1 Identity Solutions, Inc.
Connection USB 1.1 and RS-170 (analog)
Supported OS (*) Microsoft Windows (32bit)
Resolution 500 ppi
Image capture area (Platen size) 20 x 25 mm (0.8" x 1.0")
Fingerprint image size 425 x 484 pixels
Sensor type Optical
Device size 138 x 71 x 189 mm (5.5" x 2.8" x 7.5")
Device weight 820 grams (1.8 lbs.)
Operating temperature 0°C ~ +40°C
Operating humidity 0-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
